Home >> Saab >> 2004 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Locations >> Connector Locations >> Heating Pad, RR Seat (64RR)

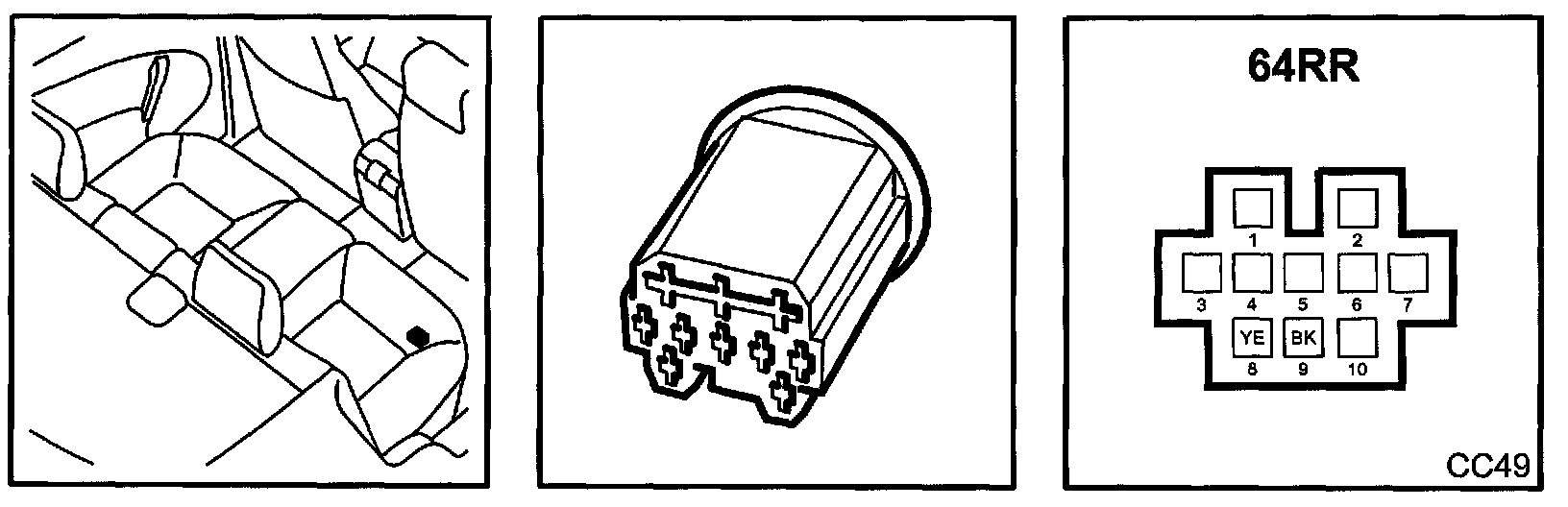

Heating Pad, RR Seat (64RR)




Heating Pad, RR Seat (64RR):
