Home >> Saab >> 2004 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Fan >> Diagrams >> Motor, LH Seat Backrest Ventilation Fan (616LH)

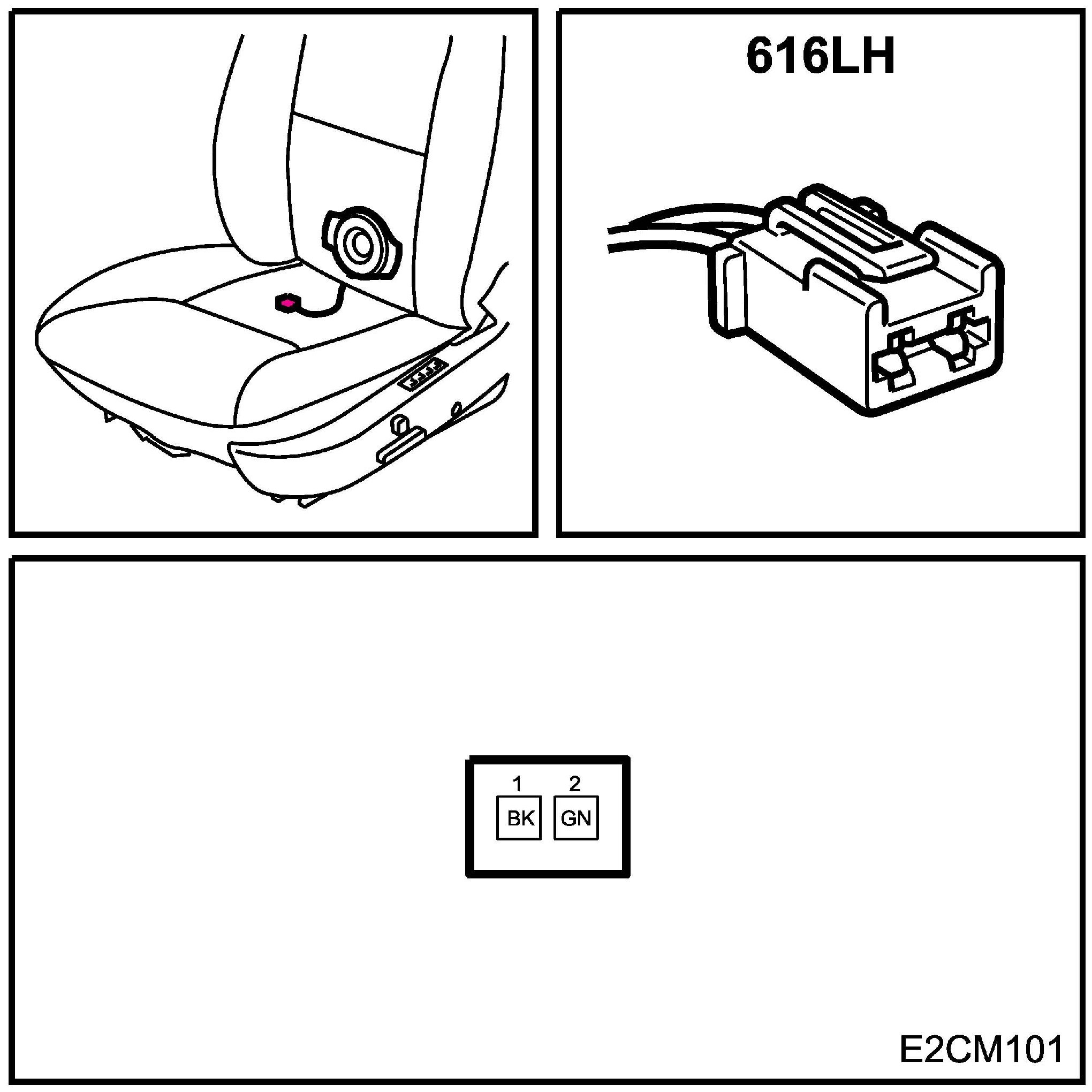

Motor, LH Seat Backrest Ventilation Fan (616LH)

Motor, LH Seat Backrest Ventilation Fan (616LH):
