Rear-View Mirrors With Antidazzle Function Do Not Work

Rear-view Mirrors With Antidazzle Function Do Not Work










Fault symptoms

The rear-view mirrors with antidazzle function do not work.

Input requirements

Ignition key in ON position

Probable cause

Fault in cables, switch or mirror glass.

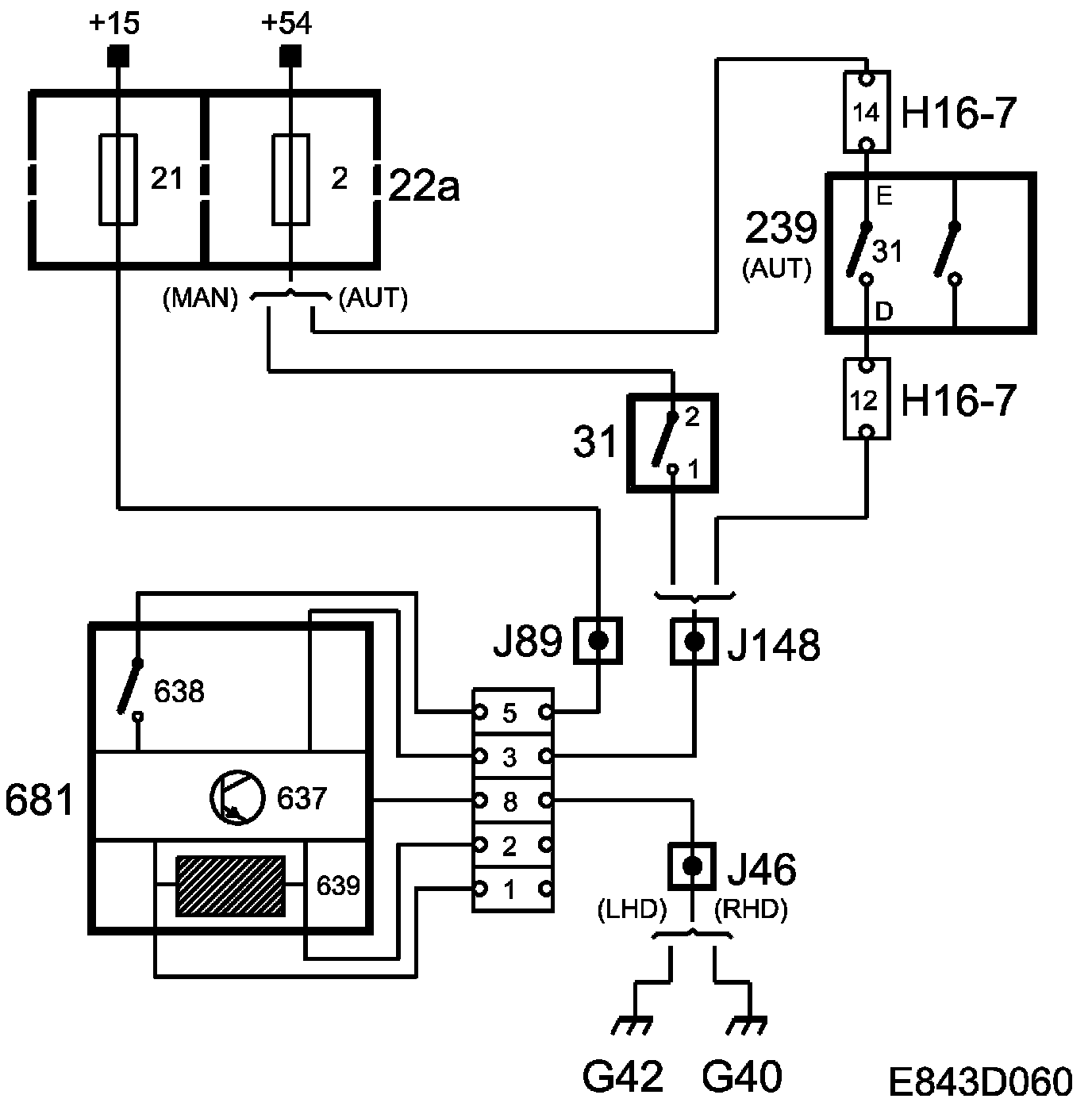

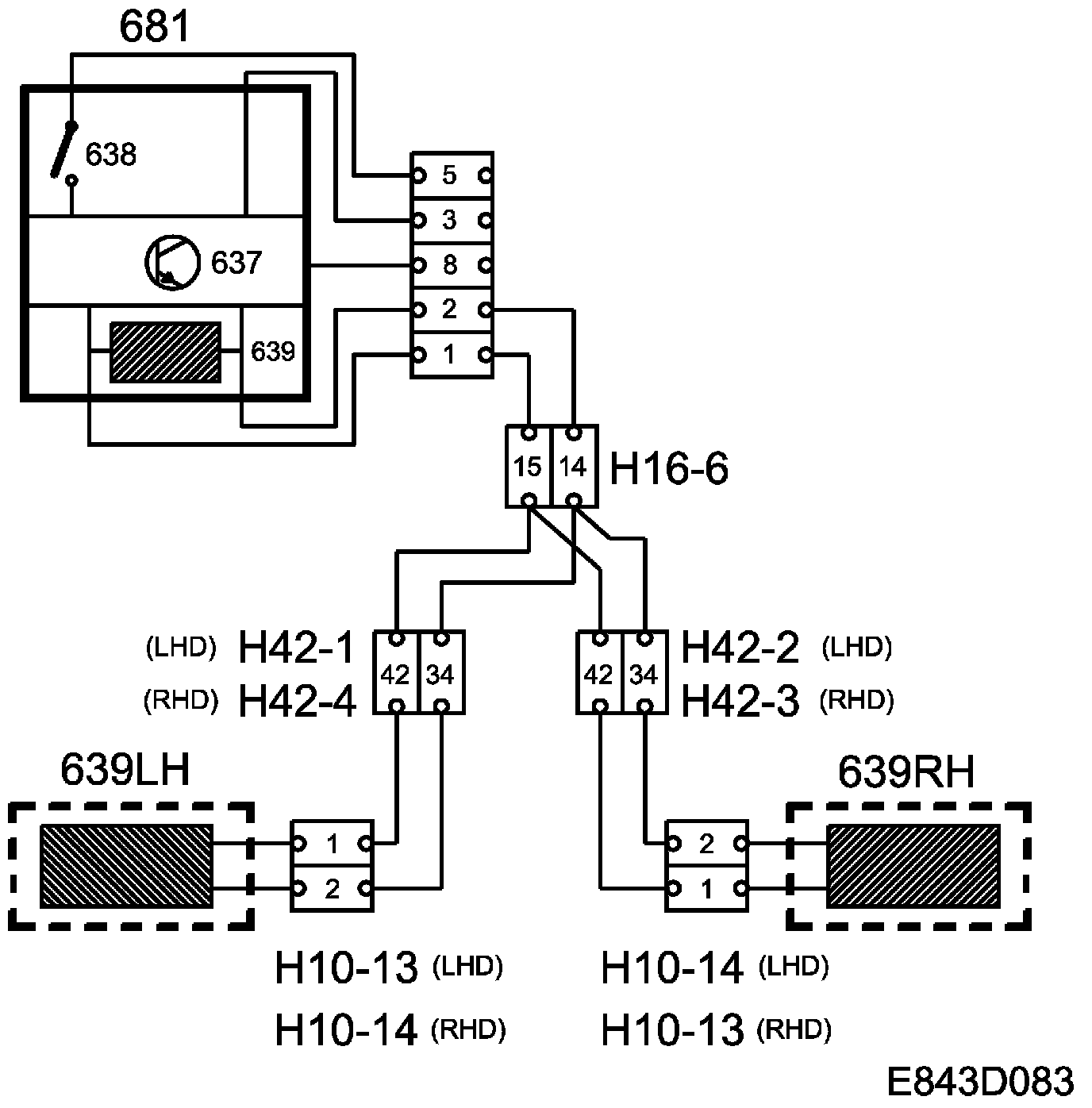

Check the wiring

Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short-circuits in the leads. Observe the multimeter, test lamp or diagnostic tool during the test.
