Sun Visor: Service and Repair

Sun Visors

To remove

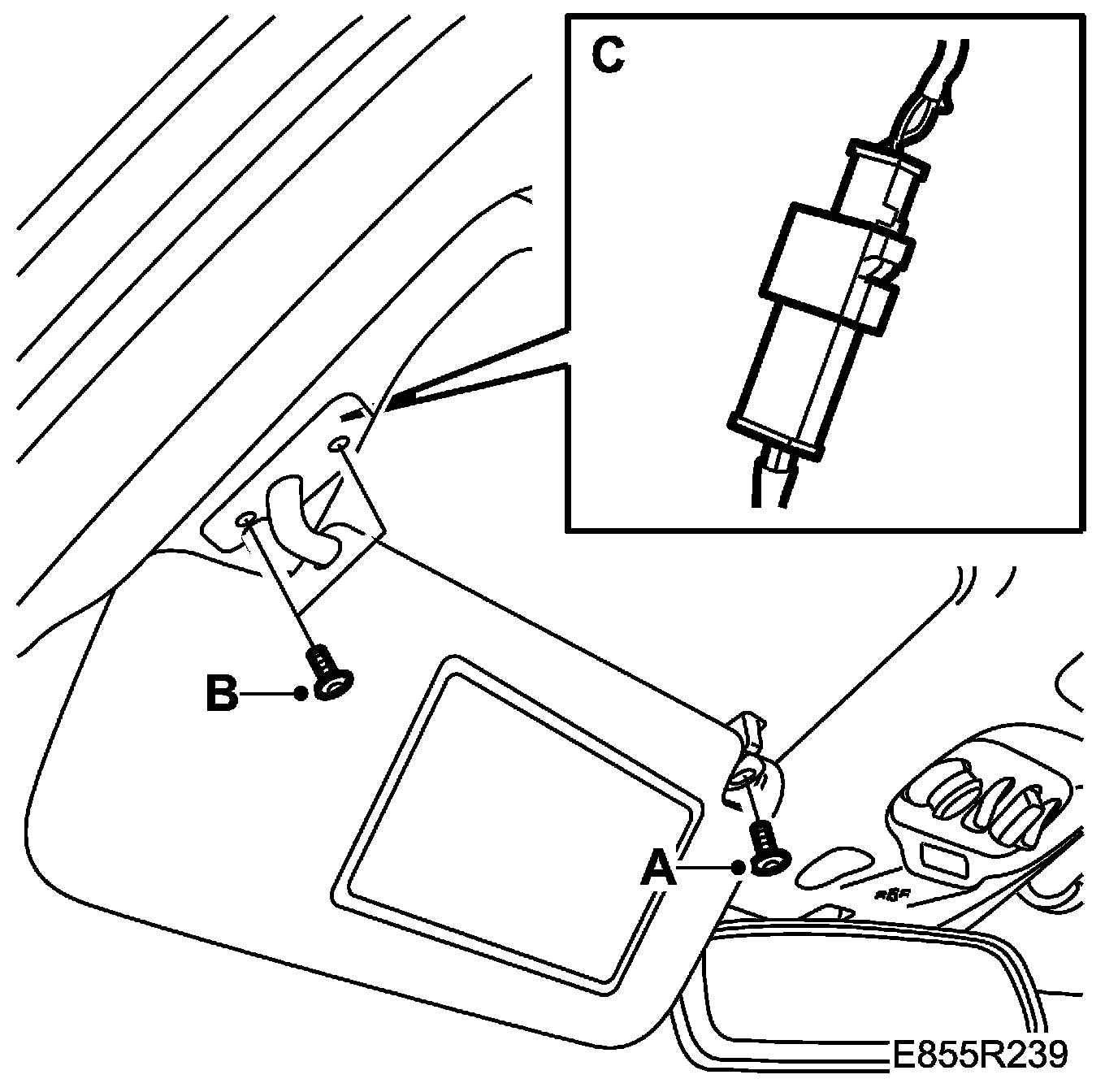

1. For cars with double sun visors, remove the screw for the inner bracket (A).
2. Remove the sun visor, 2 screws (B).







3. Mirror light:
Unplug the connector for the light (C).

To fit

1. Mirror light:
Plug in the connector for the light (C).







2. Fit the sun visor, 2 screws (B).
3. For cars with double sun visors, fit the screw for the inner bracket (A).
