Scuff Plate, Luggage Compartment, 4D

Scuff Plate, Luggage Compartment, 4D

To remove







1. Fasten up the floor panel in the luggage compartment.

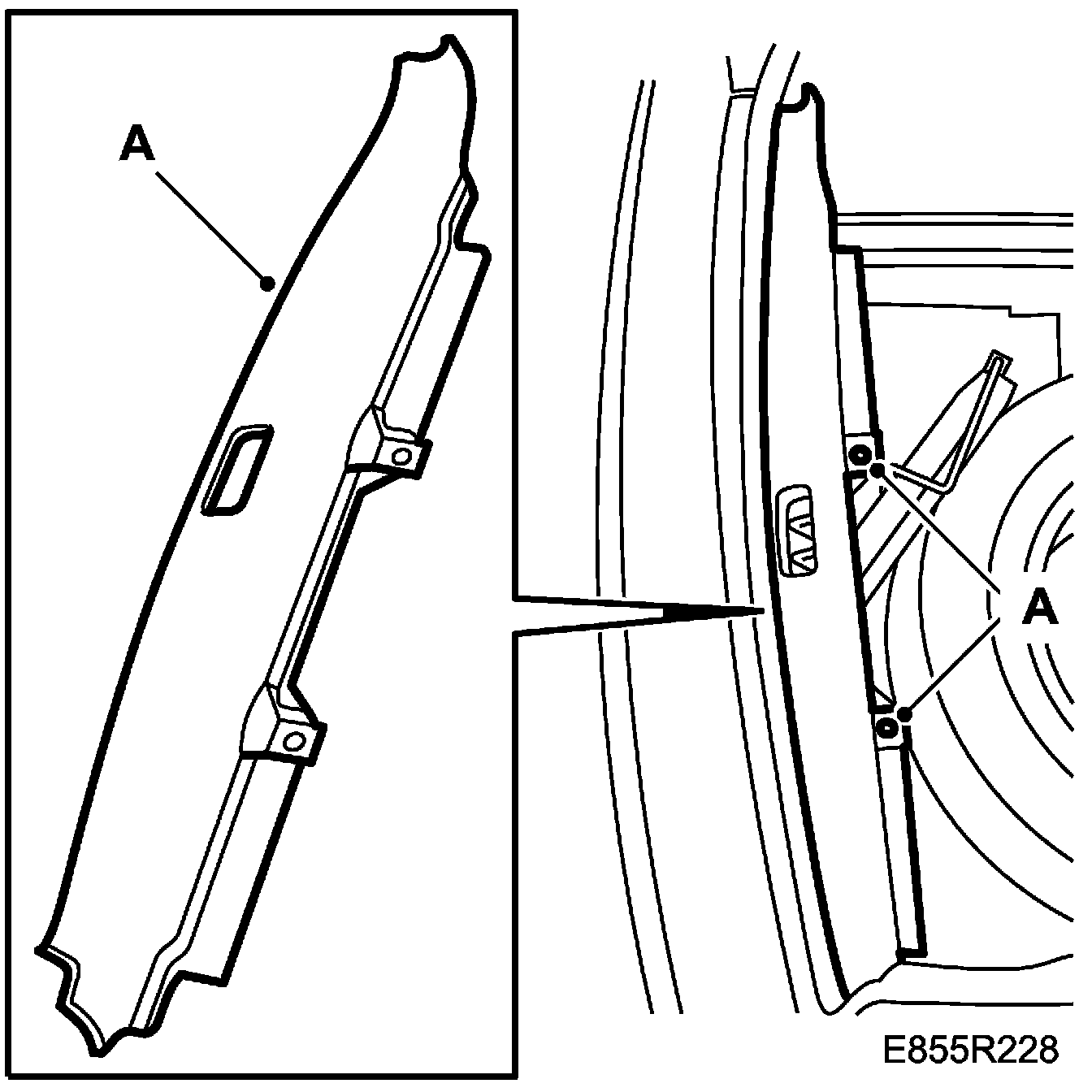

2. Remove the scuff plate's 2 clips (A). Then carefully prize the scuff plate loose with a screwdriver.

To fit

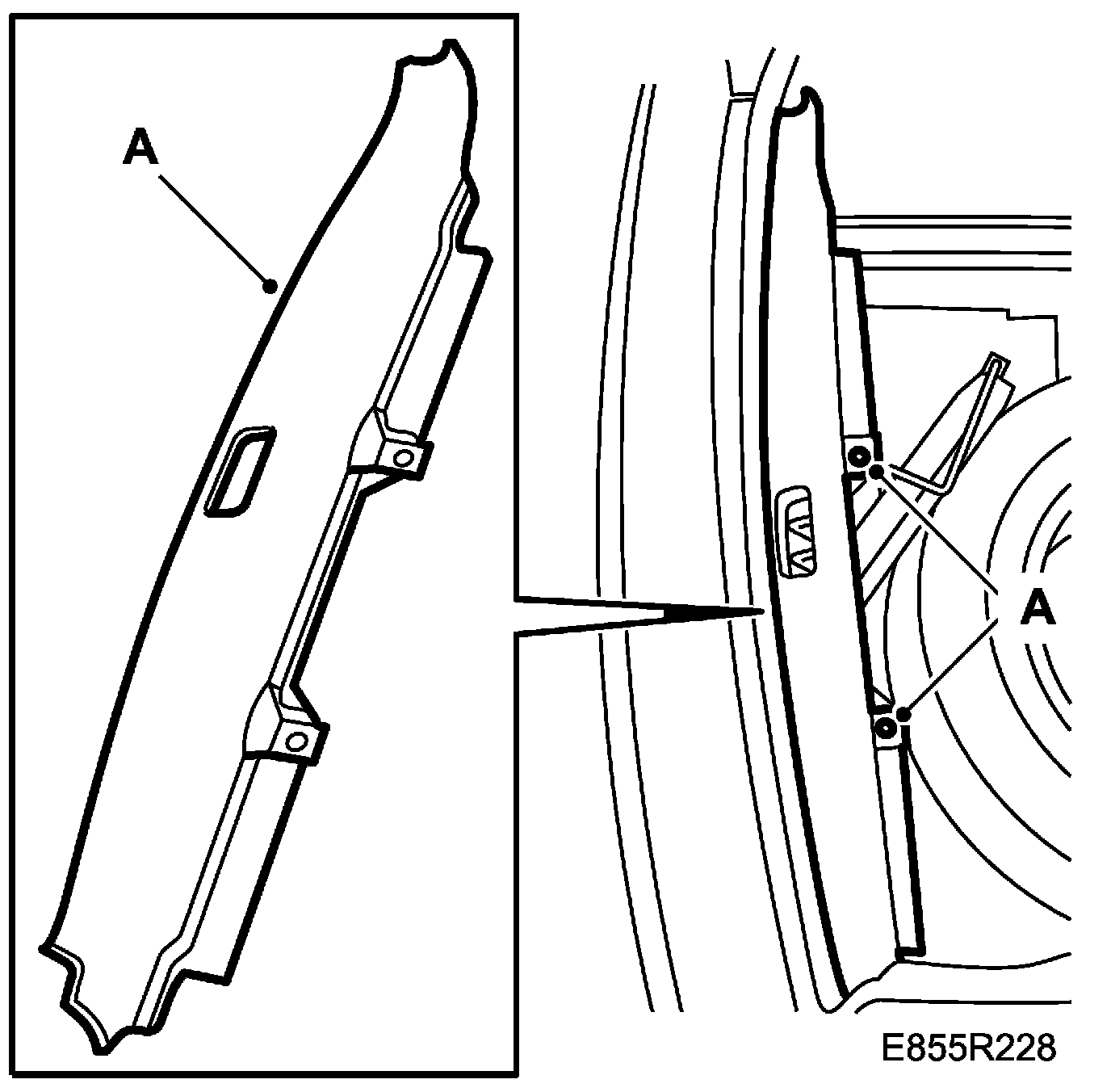

1. Fit the scuff plate's 2 clips (A).
2. Fold back the floor panel in the luggage compartment.

The scuff plate has one guide clip that is slightly wider than the others.
