Rear Seat Cup Holder

Rear Seat Cup Holder

To remove

NOTE: Removal will be easier if done by 2 persons.

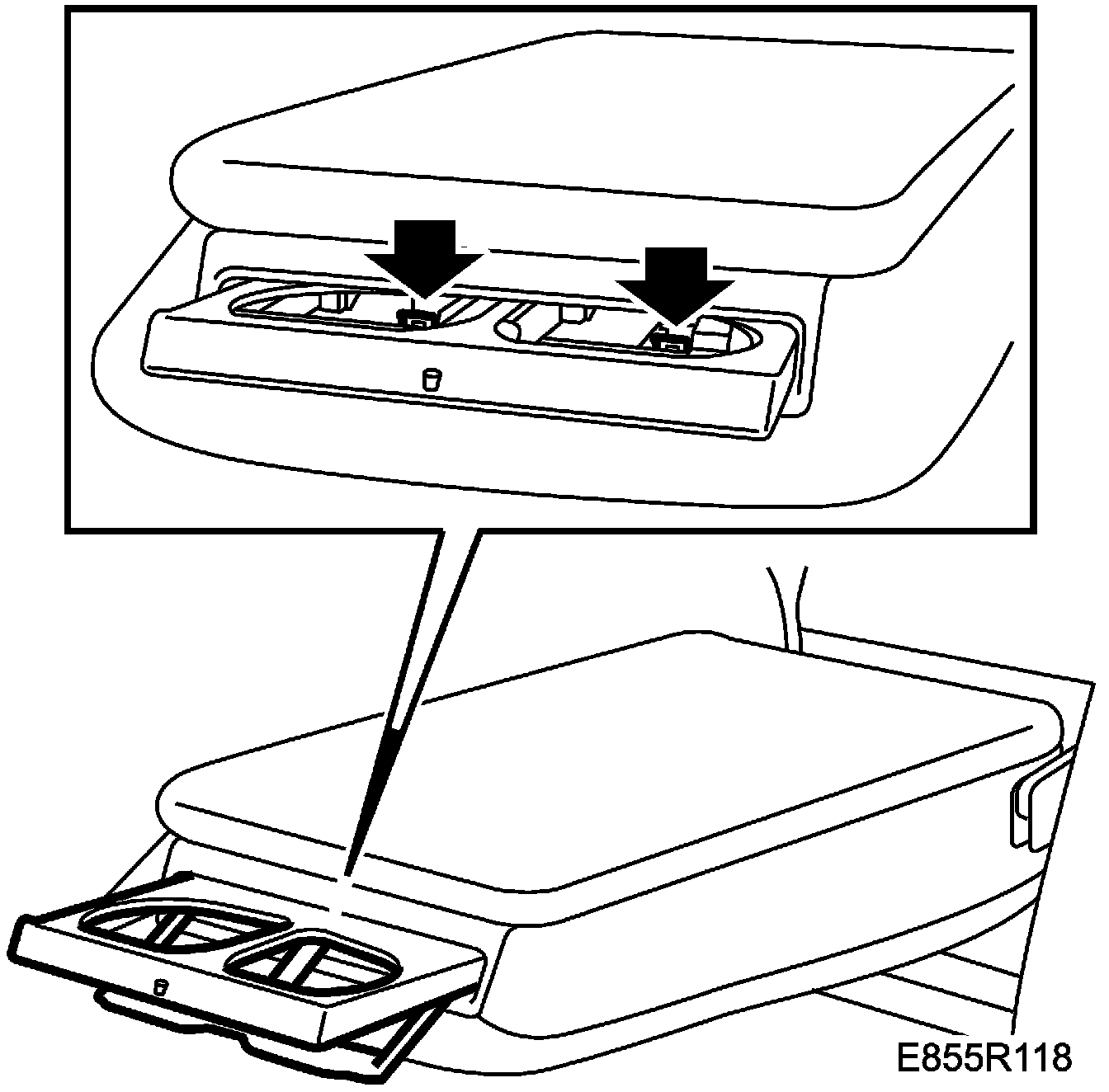

1. Lower the rear seat armrest and press the cup holder halfway out.

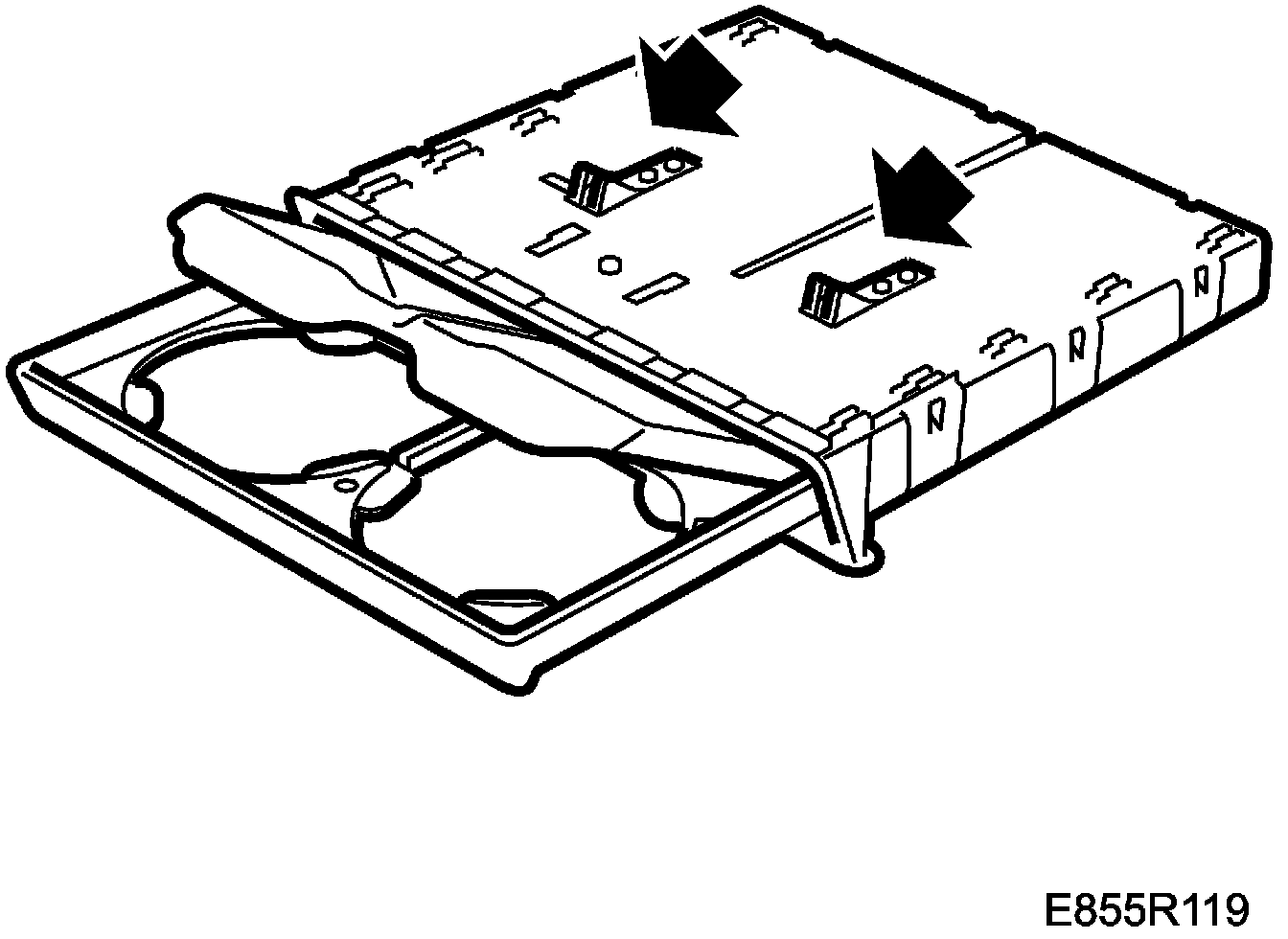

2. Use screwdrivers to bend aside the two locking tongues while withdrawing the cup holder from the armrest.







To fit

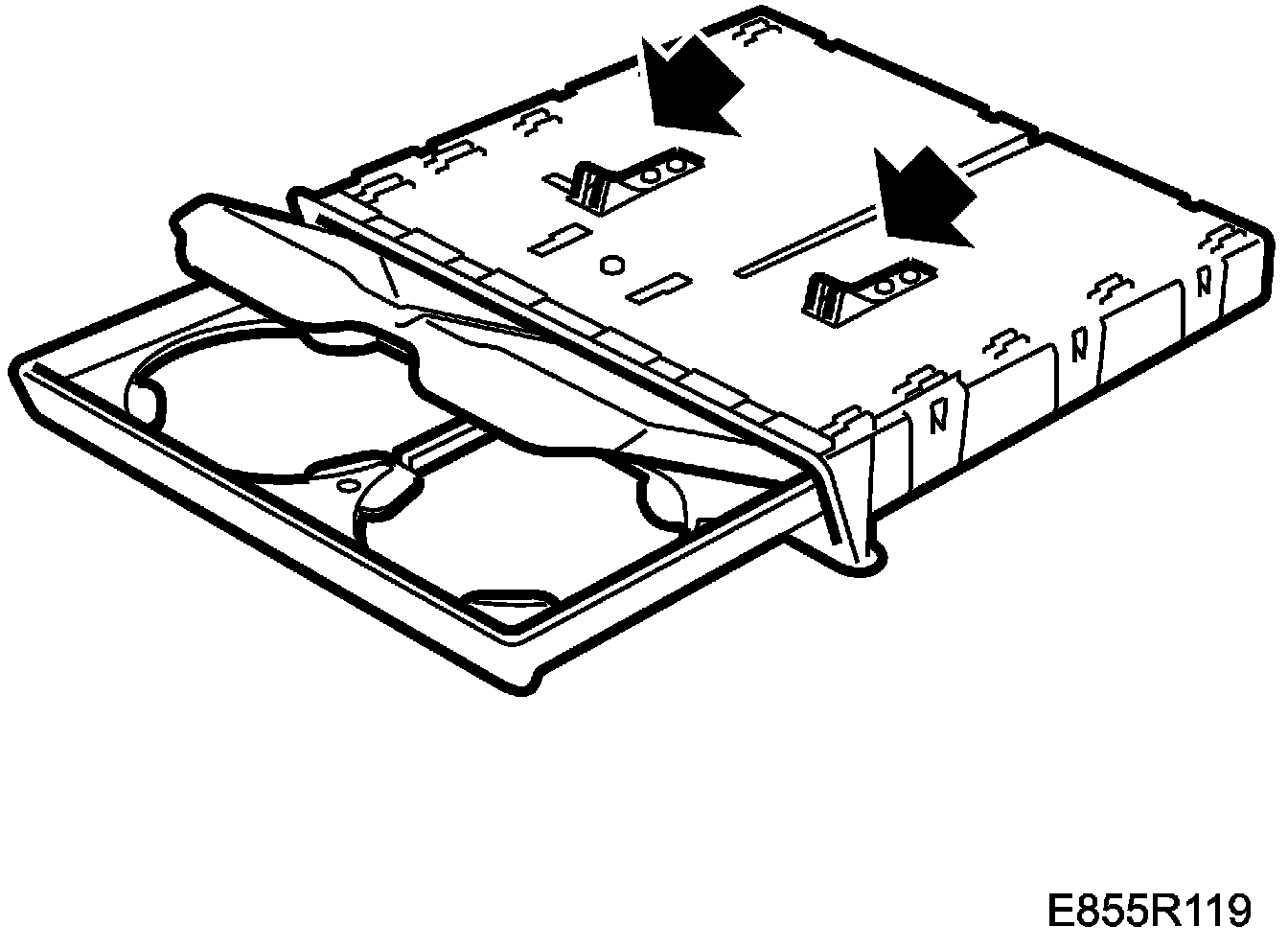

1. Press the cup holder in so that the locking tongues engage.
2. Raise the armrest.
