Rear Bumper Bracket: Service and Repair

Rear Bumper Bracket, 4D

To remove

1. Remove the bumper.

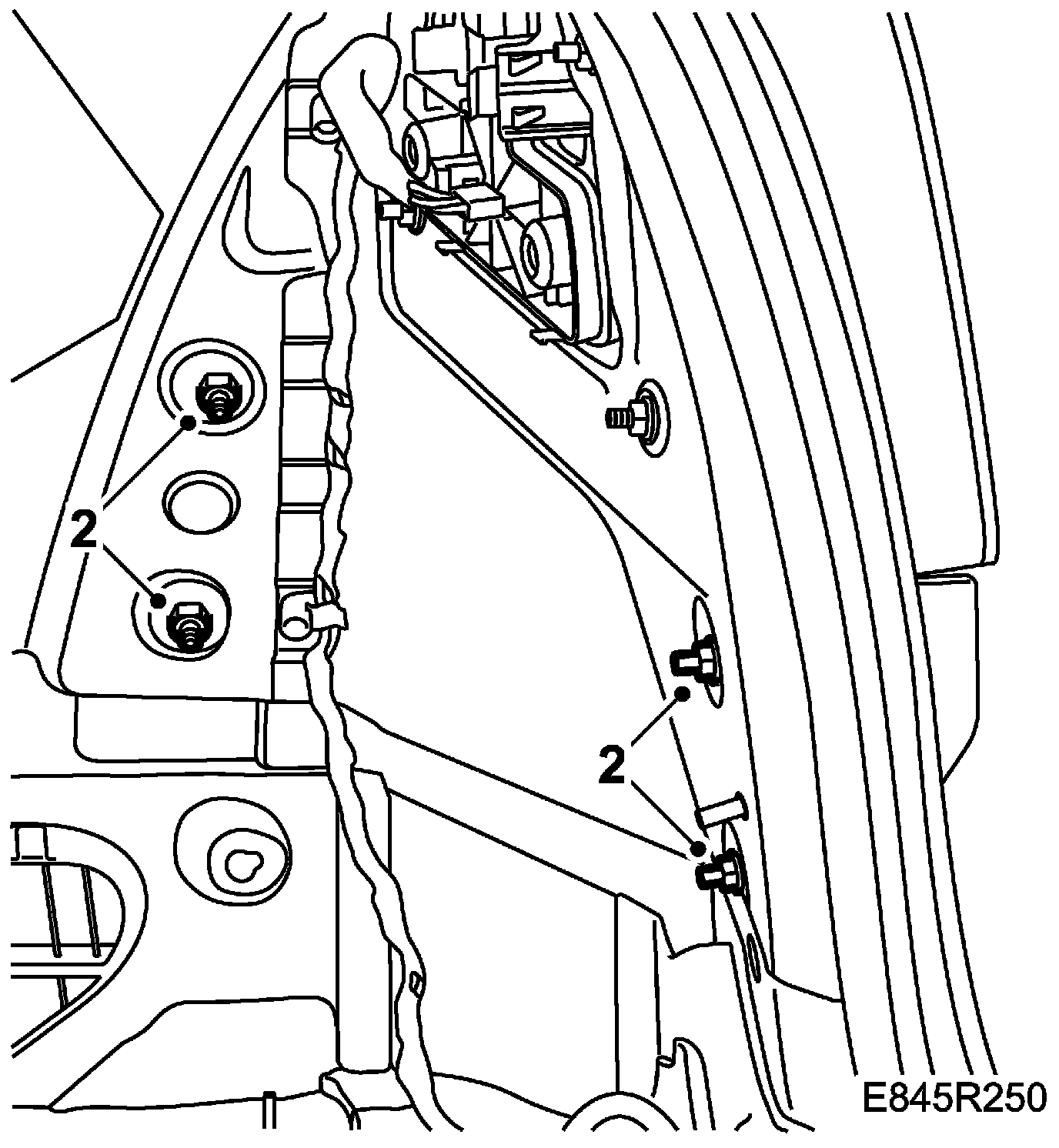

2. Loosen the nuts from inside the luggage compartment.







3. Remove the bracket.







To fit

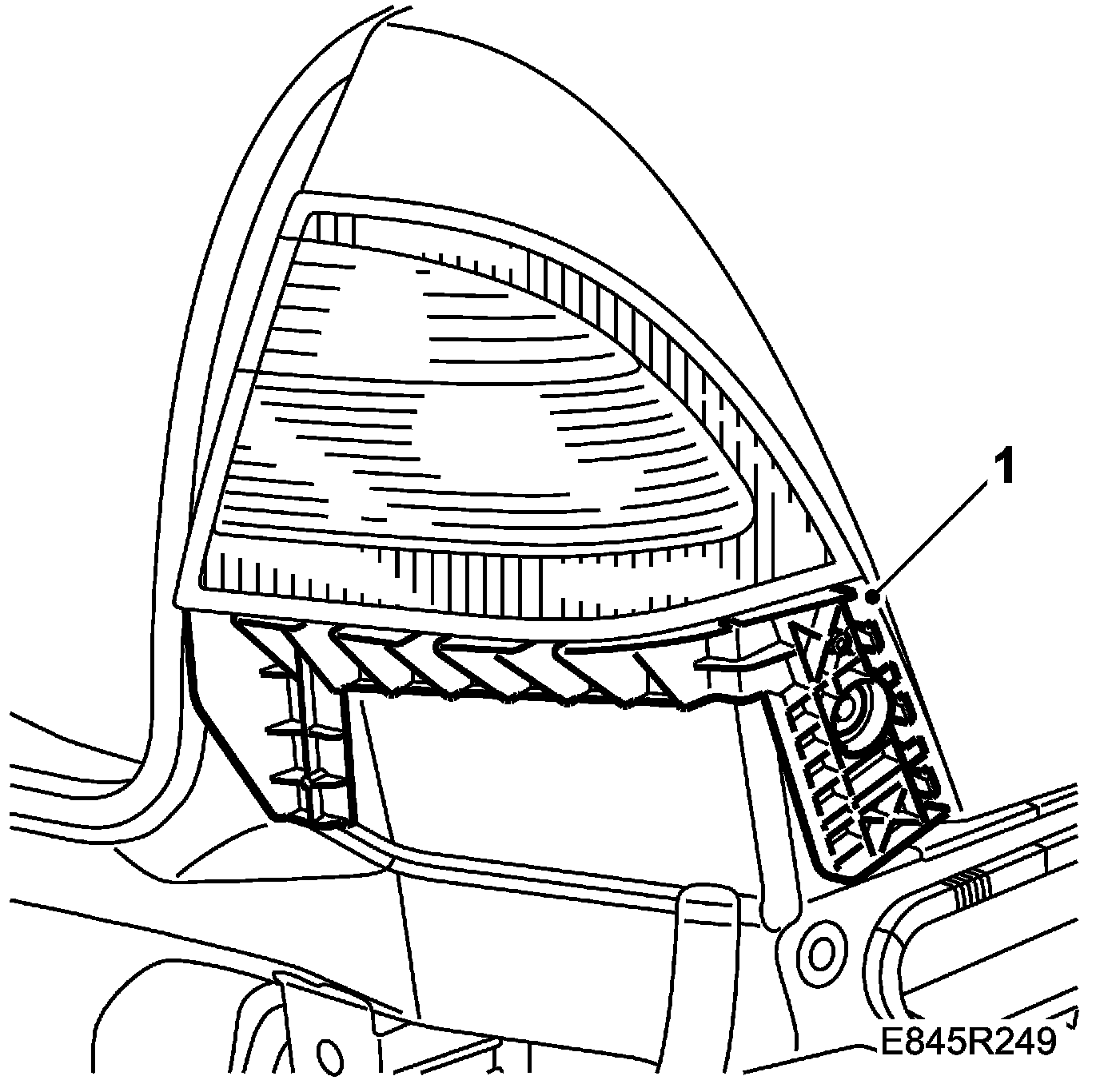

1. Wedge the bracket in behind the rear light cluster.

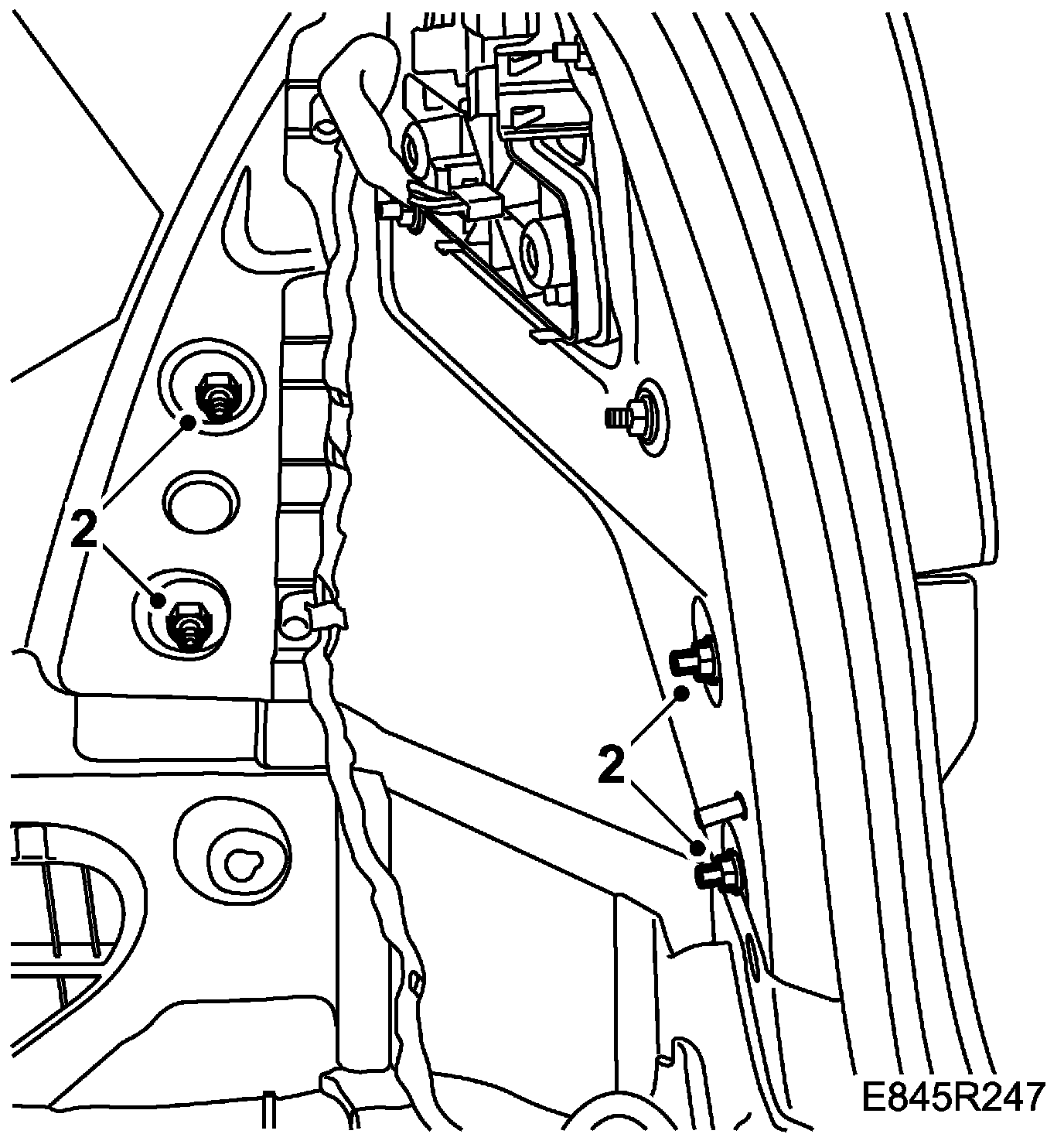

2. Fit the bolts from inside the luggage compartment.







3. Fit the bumper.
