9-5 Linear (9600) L4-2.3L Turbo (2.3t)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
Service and Repair
>>
Speakers, Dashboard (Left/Right)
Speakers, Dashboard (Left/Right)
Speakers, Dashboard (left/right)

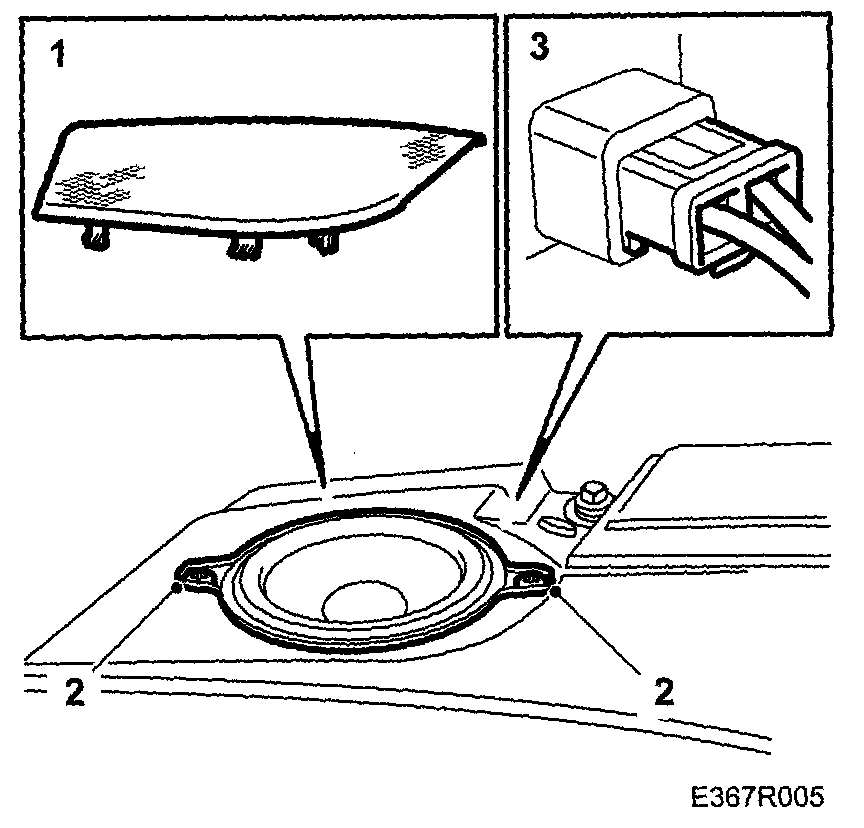

To remove
1.
Remove the speaker grilles on the dashboard.
2.
Remove the screws securing the speakers.
3.
Take out the speakers and unplug the connectors.
To fit
Fit in reverse order.
