The Vehicle Marker on the MAP Does Not Follow the Position of the Car/No GPS Reception

The Vehicle Marker On The Map Does Not Follow The Position Of The Car/No GPS Reception







Fault symptom
The indicator does not follow the route the car is following.

Preconditions
- Vehicle driven over 20 km/h.
- GPS reception 2 on reception scale.

Diagnostic help

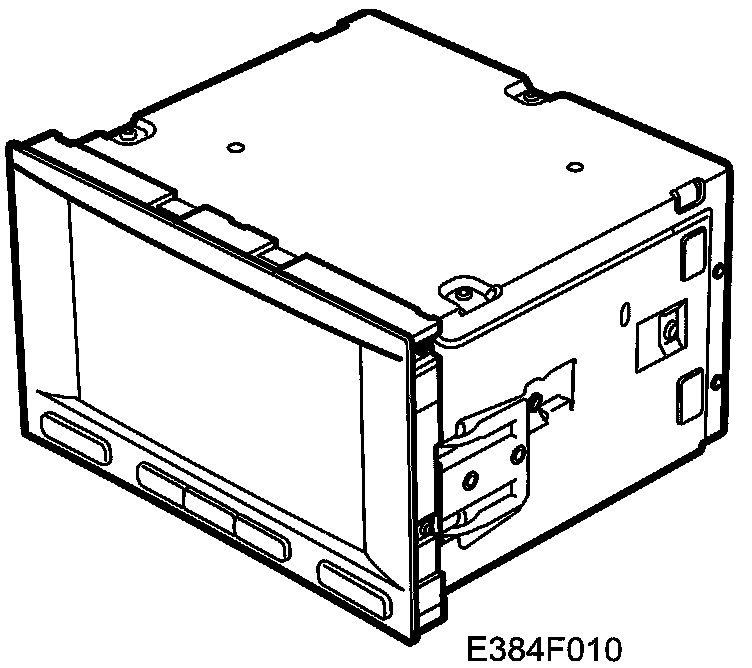

Check the speed indicator in the navigation unit while driving.

Reset the system before starting fault diagnosis and recalibrate.

Check switches for oxidation and faulty pins. Check several points and directions of the wiring harness to detect any intermittent open or short-circuits.

See also the description of read values under "General fault diagnosis" for more information.
