No Image on the Display Screen In Navigation Mode

No Image On The Display Screen In Navigation Mode







Fault symptom
No image on the display screen.

Preconditions
Ignition ON.

Conditions

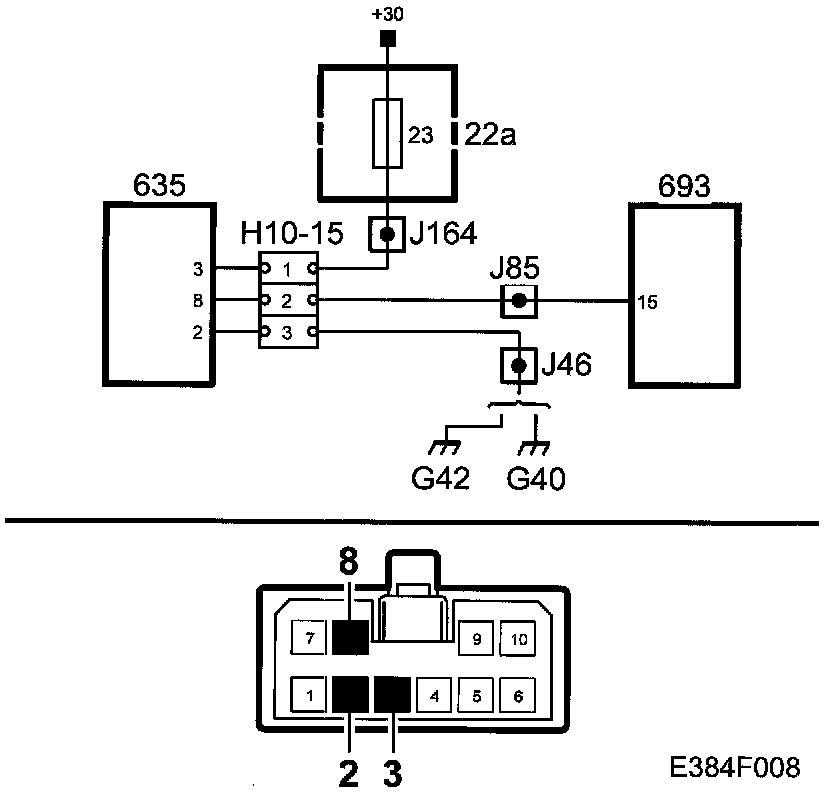

Switch Nav/Tele must be connected. There must be a power supply and grounding. Check both connectors for faulty pins and oxidation.

Diagnostic help
Correct image in radio and CD mode.

Reset the system before starting fault diagnosis and recalibrate.

Check switches for oxidation and faulty pins. Check several points and directions of the wiring harness to detect any intermittent open or short-circuits.

See also the description of read values under "General fault diagnosis" for more information.
