Switch, Nav/Tele

Switch, Nav/Tele

To remove
1. Remove the glove box.

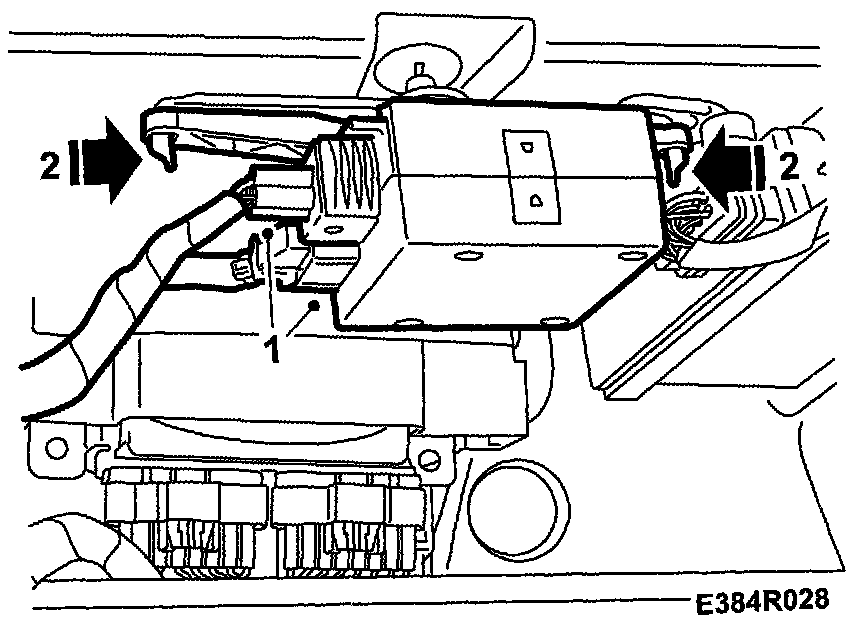

2. Press the bracket to the left and release the RH catch.







3. Remove the bracket by releasing the LH catch.
4. Unplug the connector.

To fit

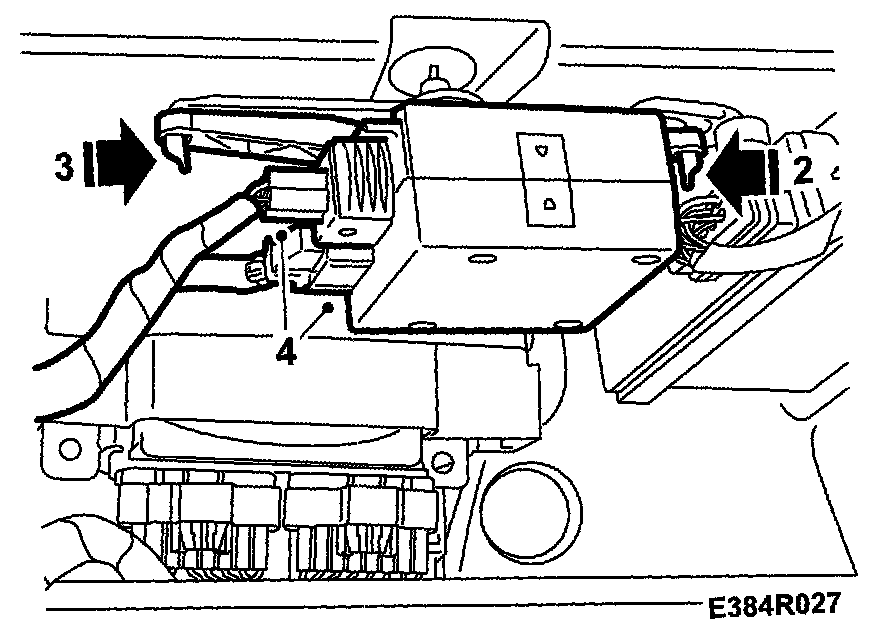

1. Plug in the connector.







2. Fit the bracket.
3. Fit the glove box.
