Sedan

Main Unit, Audio (4D)

To remove
1. Open the boot lid.

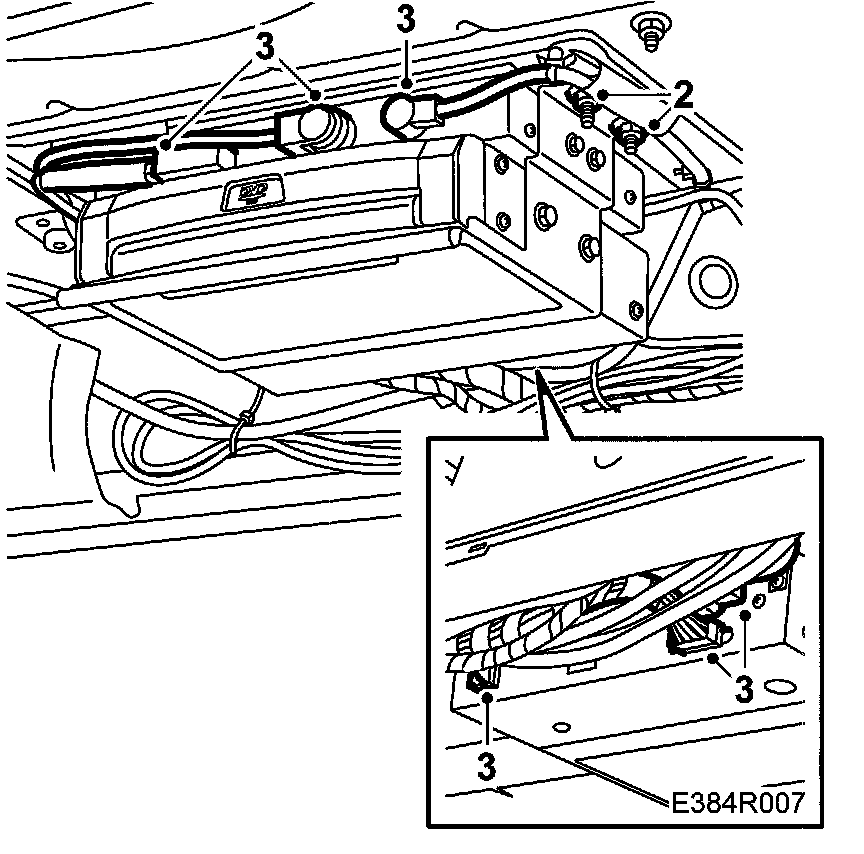

2. Remove the bracket.







3. Unplug the connectors.

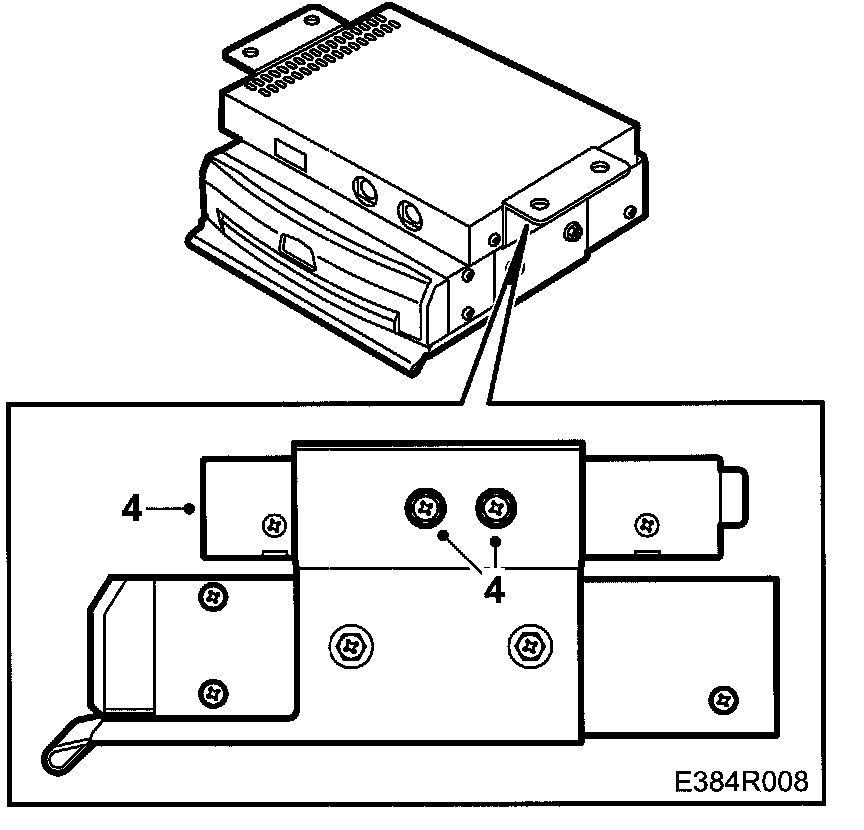

4. Remove the main unit from the bracket.







To fit

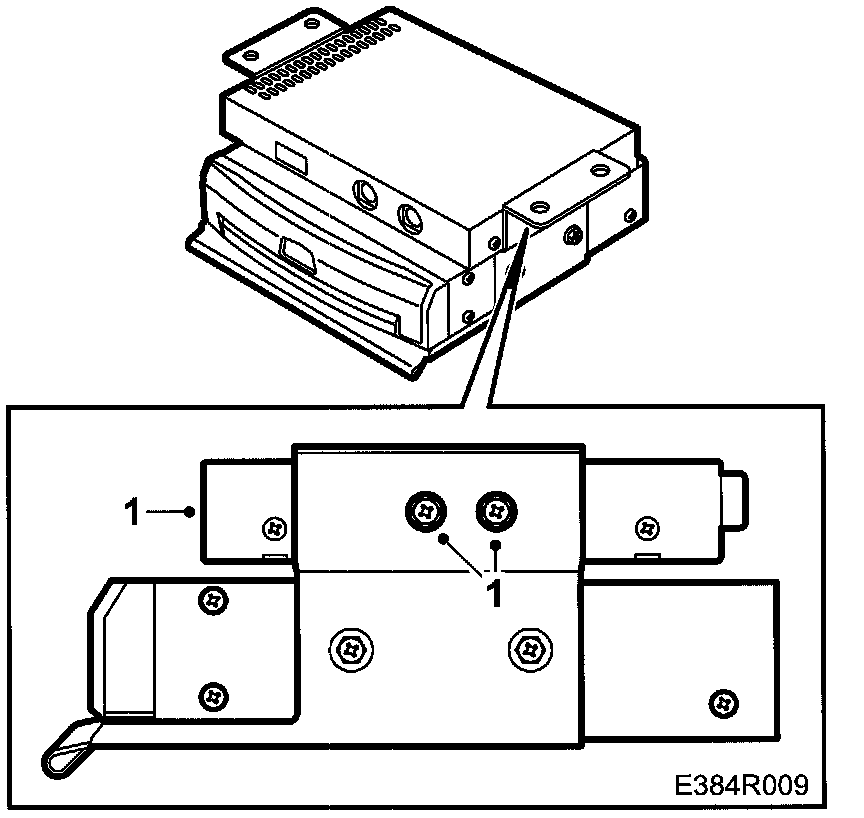

1. Fit the main unit in the bracket.







2. Plug in the connectors.







3. Fit the bracket.
4. Close the boot lid.
