Control Panel, Nav/Audio

Control Panel, Nav/Audio

To remove

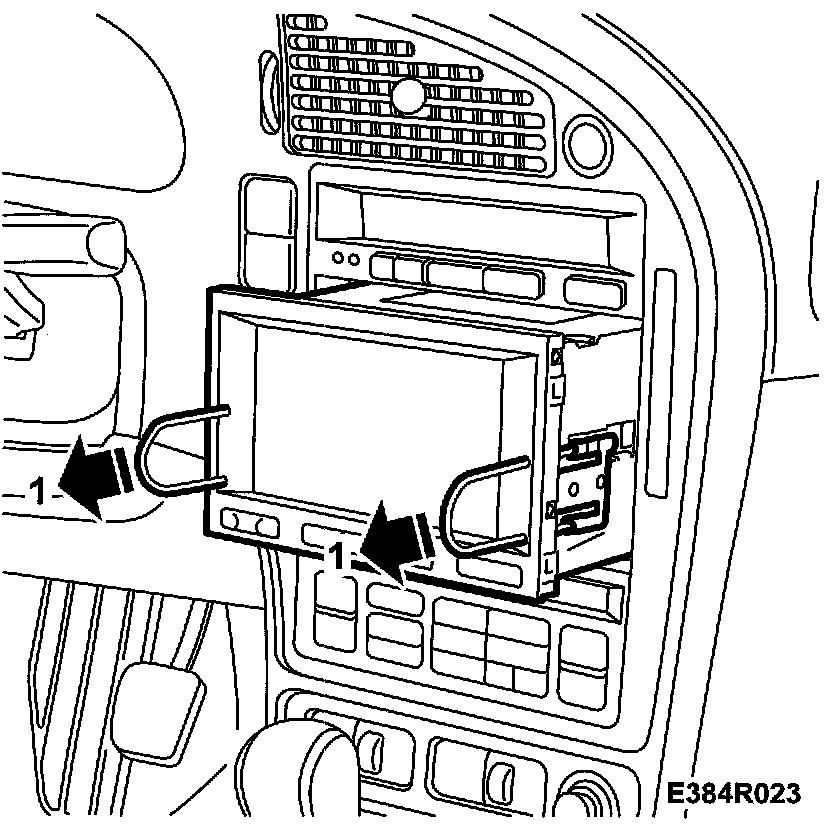

1. Remove the control panel using 84 71 161 Removal tool, audio system.

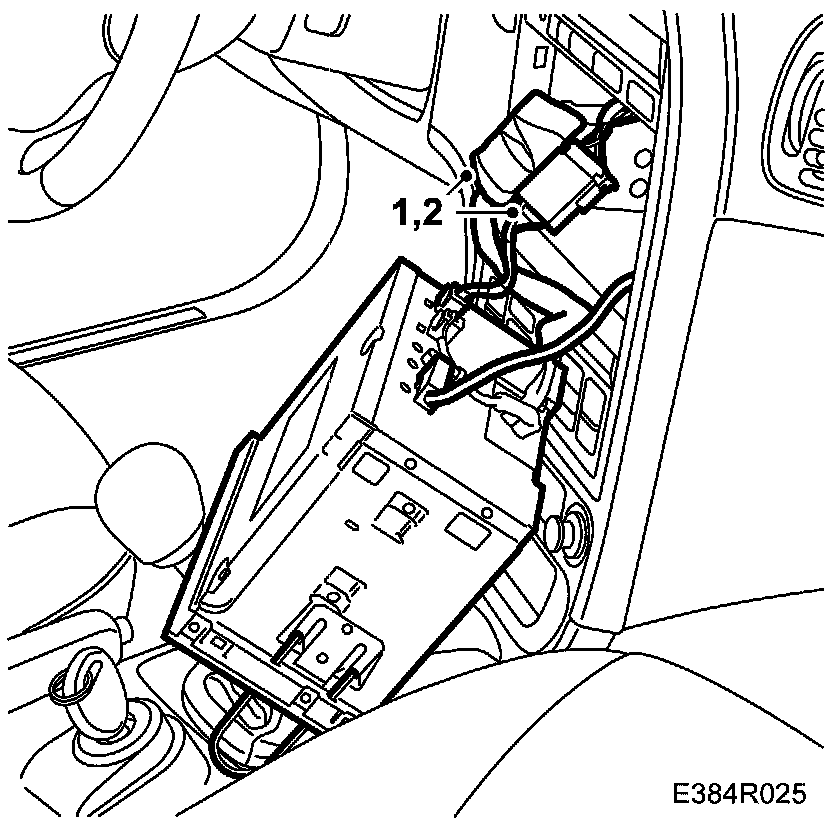

2. Remove the insulation from the connectors.







3. Unplug the connectors.

To fit
1. Plug in the connectors.







2. Fit the insulation.

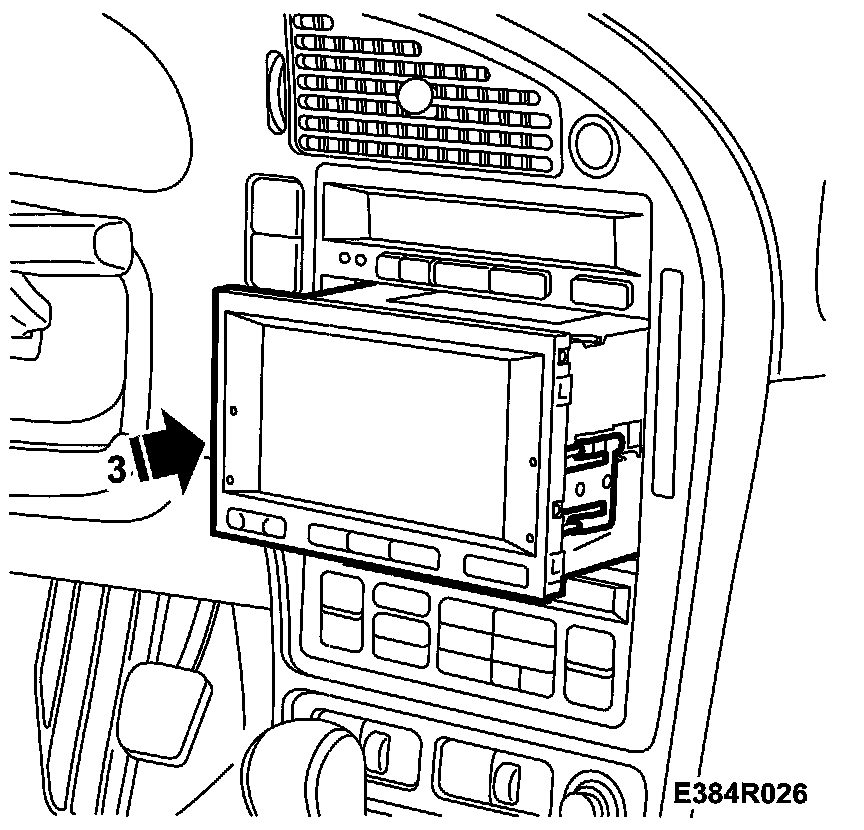

3. Fit the control panel by pressing it into place.
