Home >> Saab >> 2004 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Global Positioning System >> Diagrams >> Connector Views >> Connection, Analogue, Onstar (466ha)

Connection, Analogue, Onstar (466ha)

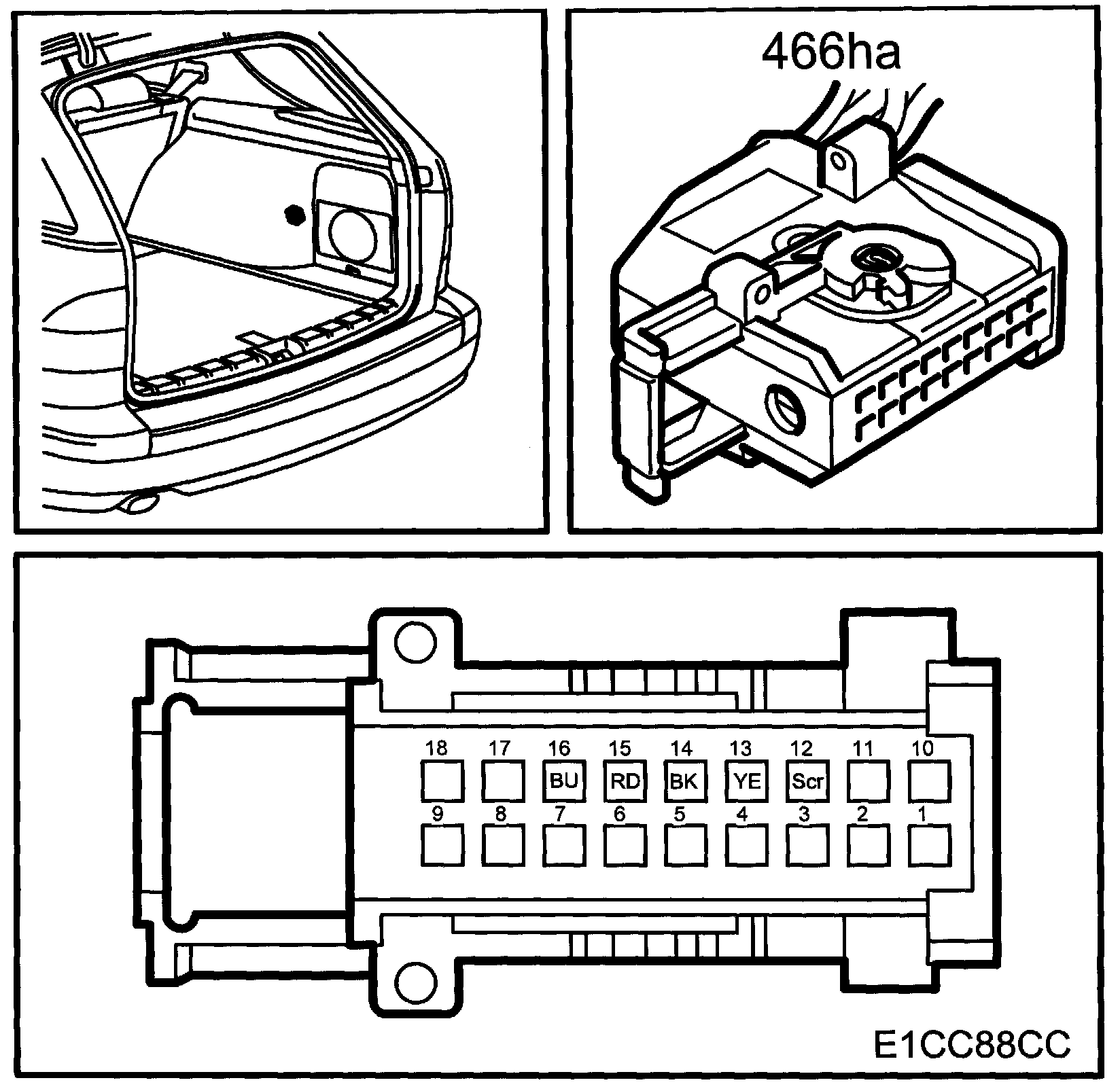

Connection, Analogue, OnStar (466ha) (Part 1):

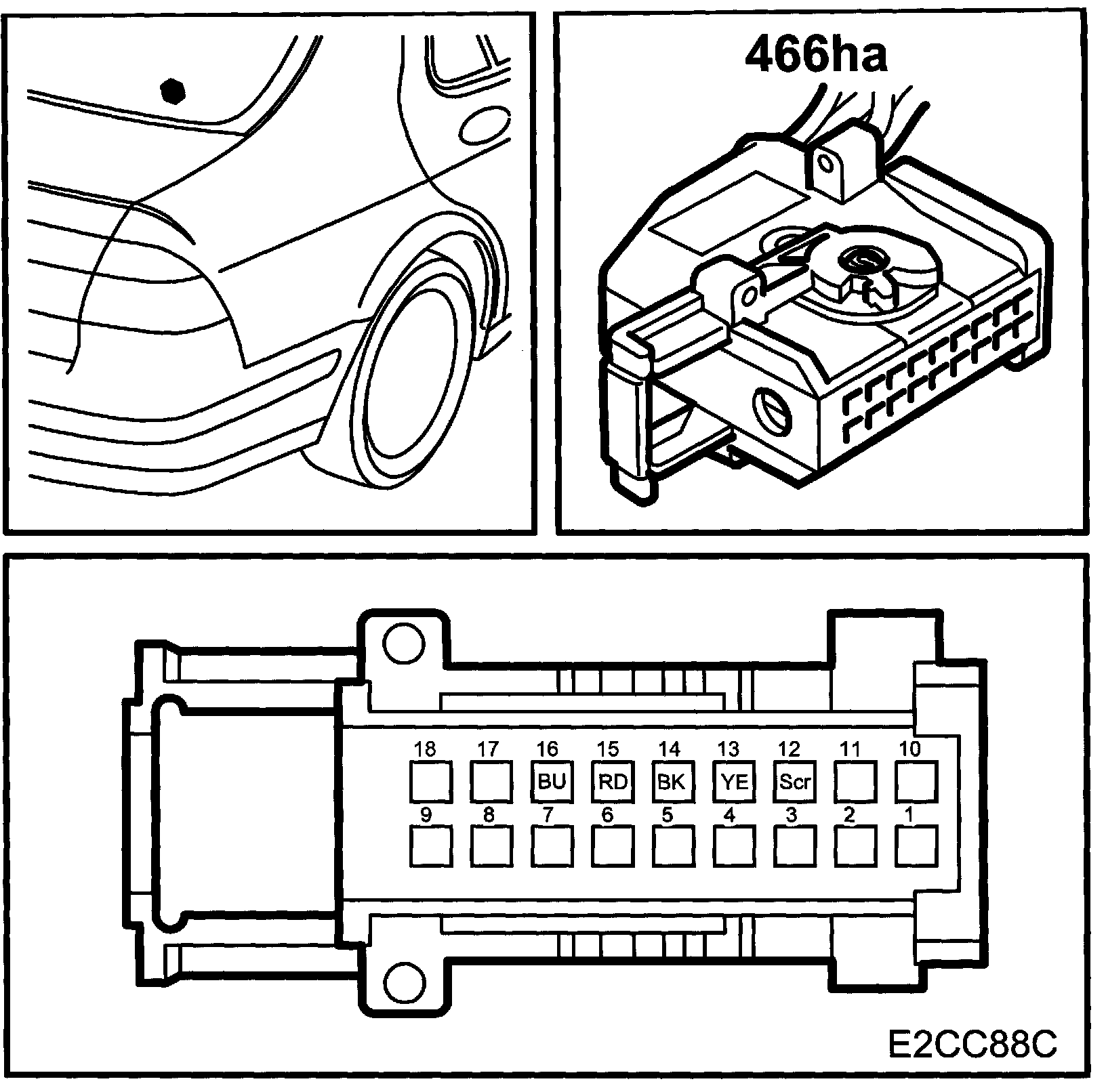

Connection, Analogue, OnStar (466ha) (Part 2):
