Siren



Siren

To remove







1. Raise the car and remove the left front wheel.

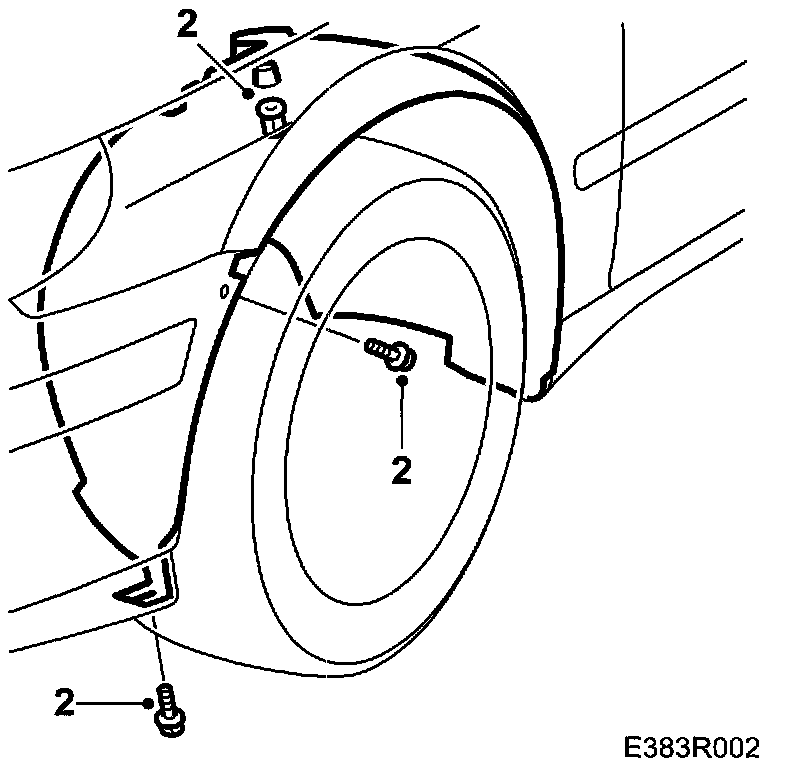

2. Dismantle the front part of the wing liner in the left front wheel housing.

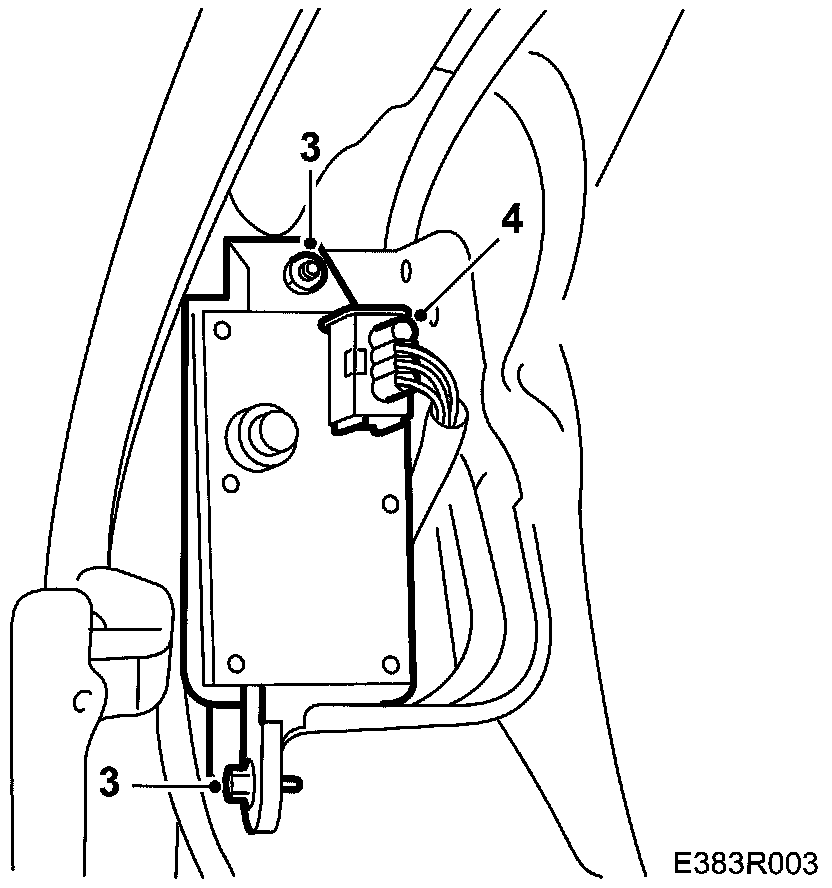

3. Release 1 nut and 1 screw holding the siren.







4. Unplug the connector and remove the siren.

To fit
Fit in reverse order.
