TCM - (Transmission Control Module)

P1921
No Bus Data From ECM.






Fault Symptoms
CHECK GEARBOX warning lamp is ON.
TCM in Limp-Home mode.

Conditions
The TCM has had contact with the ECM at some time during the same ignition-on period

Fault Criteria
If there has not been communication on the bus between the ECM and the TCM for more than 4 seconds a P1921 diagnostic trouble code is generated

Diagnostic Help

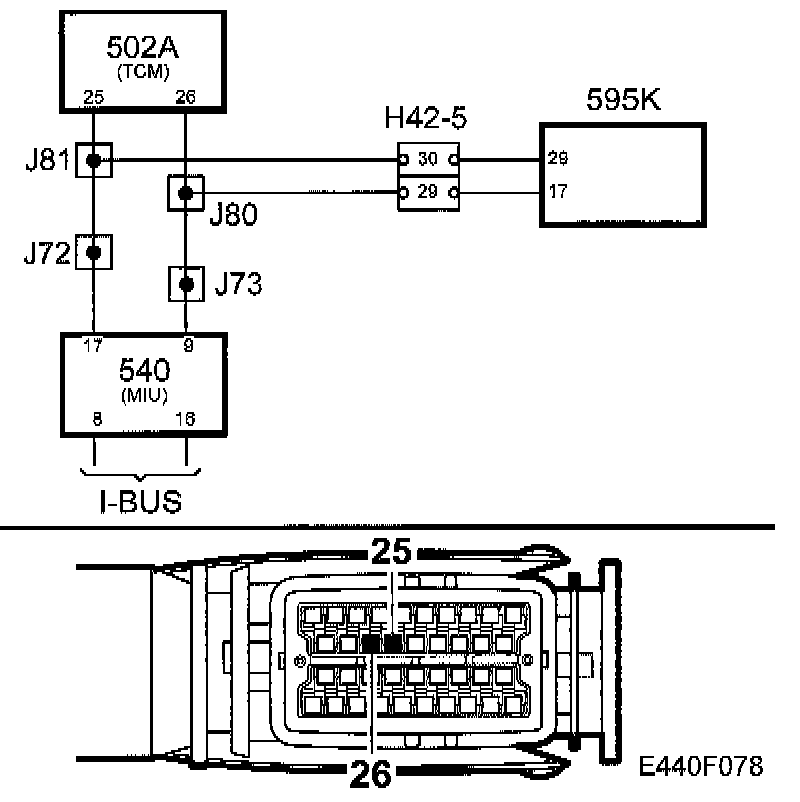

See bus and diagnostic fault finding
