Checking the Relay's Control Module Output

Checking the Relay's Control Module Output

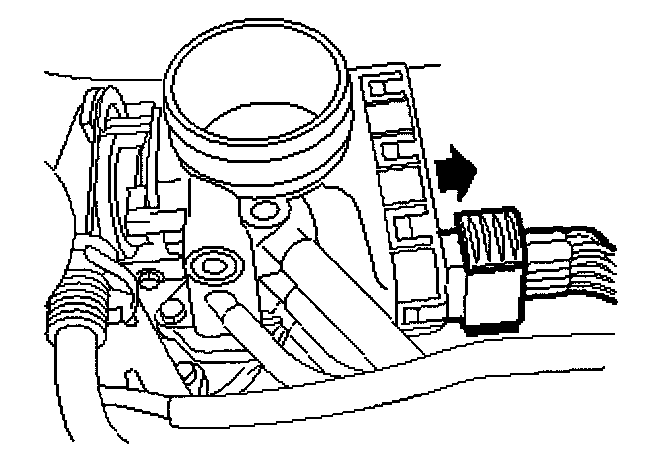

^ Unplug the connector to the throttle body so that the control module generates a diagnostic trouble code. The limp-home relay will then activate the next time the ignition is turned on.

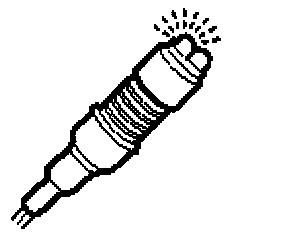

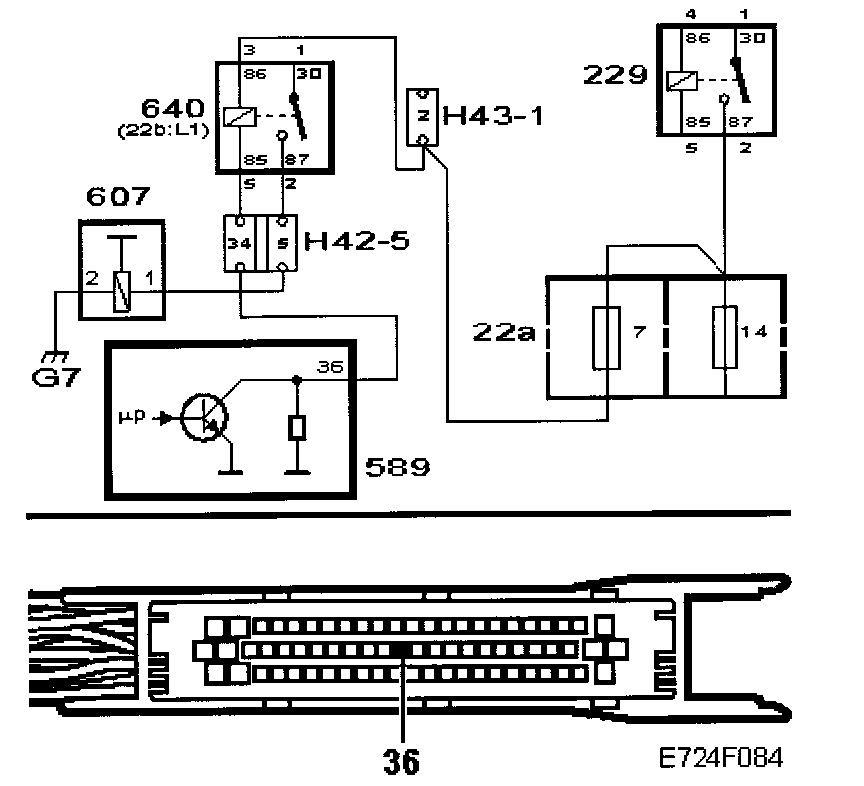

^ Connect test lamp 86 11 857 to pin 3 (86) and pin 5 (85) of the relay holder.







^ Turn the ignition switch to the OFF position.







^ Turn the ignition switch to the ON position.







^ The test lamp should flash 5 times.

Is the function correct?

NO ^ Rectifying the Lead - II

YES ^ Changing Components
