Fault Conditions

P1610

Internal Control Module. Malfunction.







Fault symptoms
^ Engine speed limited to 2200 rpm.
^ CHECK ENGINE.
^ Idling speed incorrect.
^ Cruise control not working.

On-Board Diagnostics

Type of diagnosis:
^ Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
^ Ignition in ON position.

Fault criteria:
^ Pedal position deviation between processors 592 and 339.

Dependents:
^ None.

System reaction to a fault:
^ Fuel shut-off at engine speeds above 2200 rpm. Throttle control in limp-home. Limp-home solenoid will be activated 5 times in succession each time the ignition is switched on until the fault has been repaired and the diagnostic trouble codes cleared.

OK report:
^ Accelerator pedal has been depressed at some time and then fully released. 120 s has expired since then without fault criteria being fulfilled.


Fault handling: (For more information refer to "Fault diagnosis, general". Description of On-Board Diagnostics)

^ CHECK ENGINE goes on immediately and can be turned off only by clearing the trouble codes.

Diagnostic help

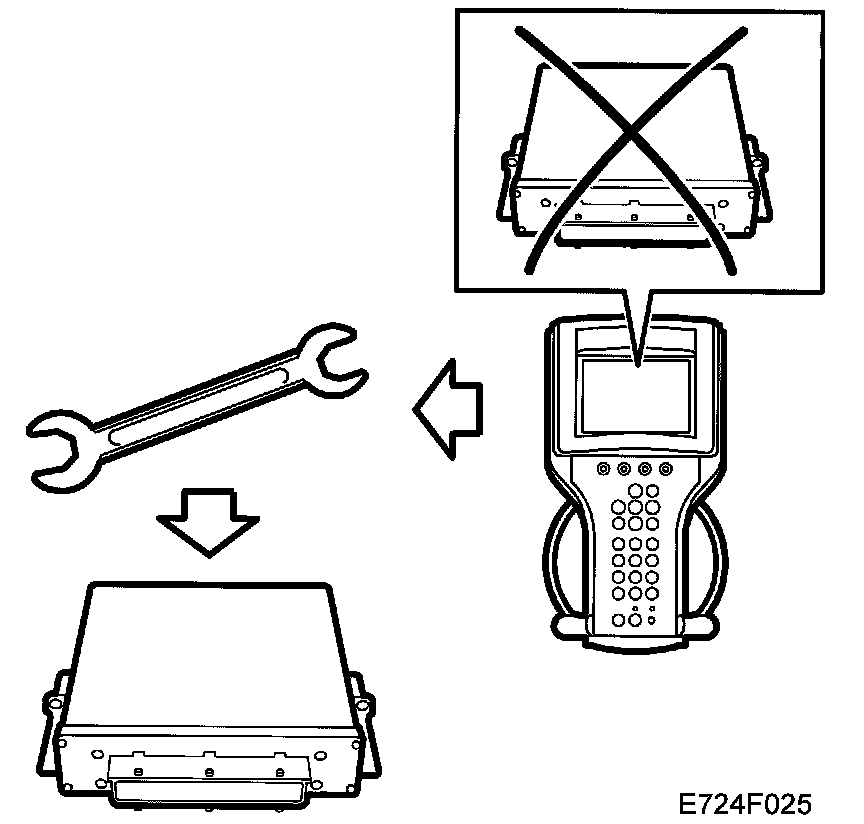

Fault diagnosis concerns internal control module fault.
