Fault Conditions

P1601

Internal Control Module. Malfunction.







Fault symptoms
^ CHECK ENGINE.

On-Board Diagnostics

Type of diagnosis:
^ Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
^ Ignition in ON position.

Fault criteria:
^ No pulses generated to control module input for pedal position sensor 2.

Dependents:
^ None.

System reaction to a fault:
^ None

OK report:
^ Accelerator pedal has been depressed at some time and then fully released. 120 s has expired since then without fault criteria being fulfilled.

Fault handling: (For more information, Fault Handling III, Other Emission-Related Components and Function)

^ Type III.

Diagnostic help

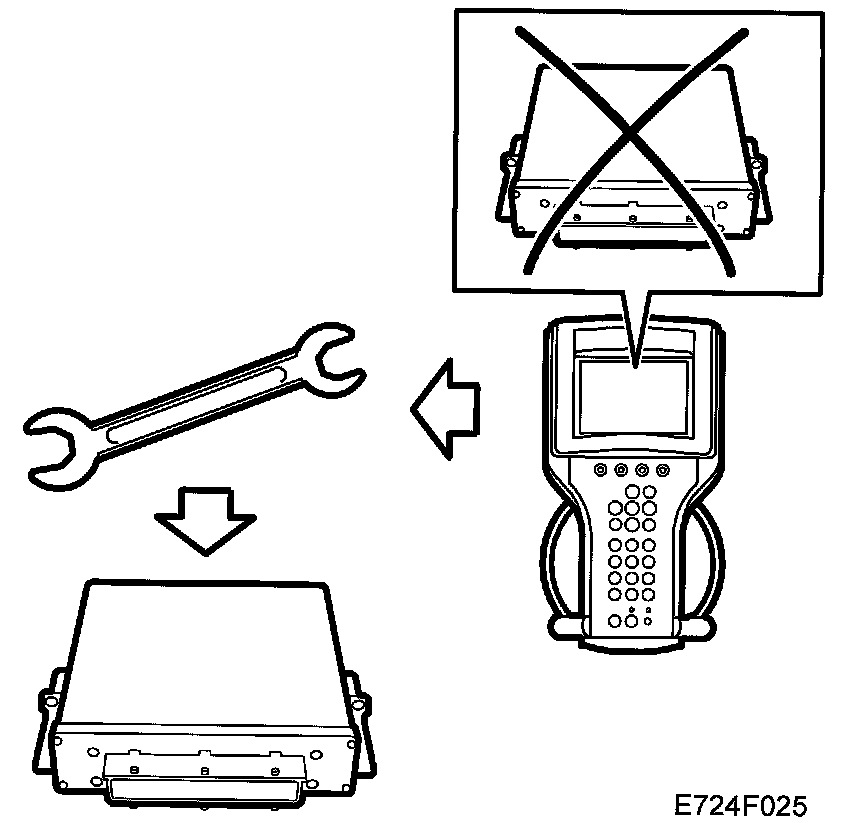

Fault diagnosis concerns internal control module fault.

P0605
