Checking the Control Module Brake Light Input




Checking The Control Module Brake Light Input







^ Turn the ignition switch to the ON position.

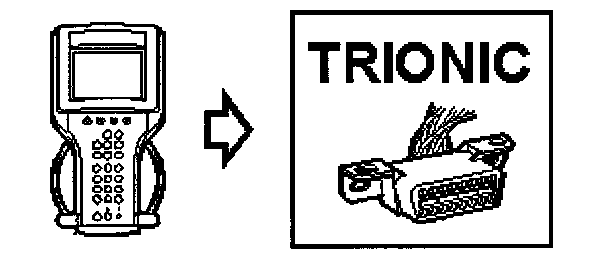

^ Contact Trionic.

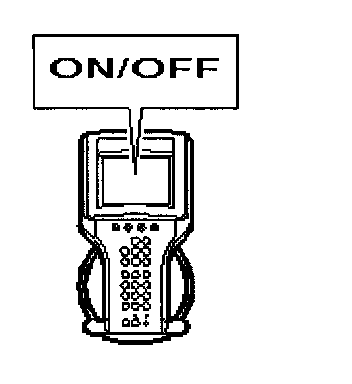

^ Read value: Brake Light (Trionic).







^ The reading should be ON when the brake pedal is depressed and OFF when the brake pedal is released.

Is the function correct?

NO ^ Changing Components

YES ^ Remedial Action OK
