Fault Conditions

P1334

Combustion Detection Cyl. 3+4. Open Circuit/Short To B+.







Fault symptoms
^ CHECK ENGINE.

On-Board Diagnostics

Type of diagnosis:
^ Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
^ General conditions for this trouble code: Atmospheric pressure must exceed 72 kPa and the engine coolant and intake air temperatures must exceed -7 degree C.
^ Engine running. Main relay voltage exceeding 10 V. Ignition synchronized.

Fault criteria:
^ Voltage exceeding 5 V continuously during 200 combustions.

Dependents:
^ None.

System reaction to a fault:
^ None.

OK report:
^ Enable criteria fulfilled. Fault criteria for P1312 or P1334 not fulfilled within 300 combustions.

Fault handling: (For more information, Fault Handling III, Other Emission-Related Components and Function)

^ Type III.

Diagnostic help

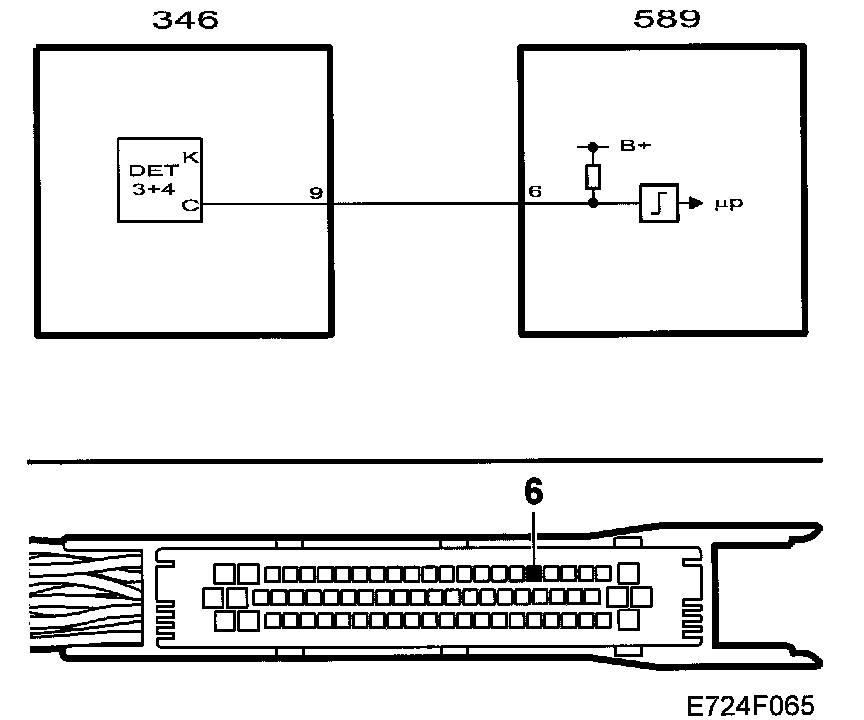

Fault diagnosis concerns an electrical fault in the connecting leads.
^ Combustion Detection Cyl 3+4/Bank2, unit %

Checking the wiring
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short circuits. Observe the multimeter, diagnostic tool or test lamp during the check.
