Checking Mechanical Limp-Home

Checking Mechanical Limp-home












^ Turn the ignition switch to the OFF position.

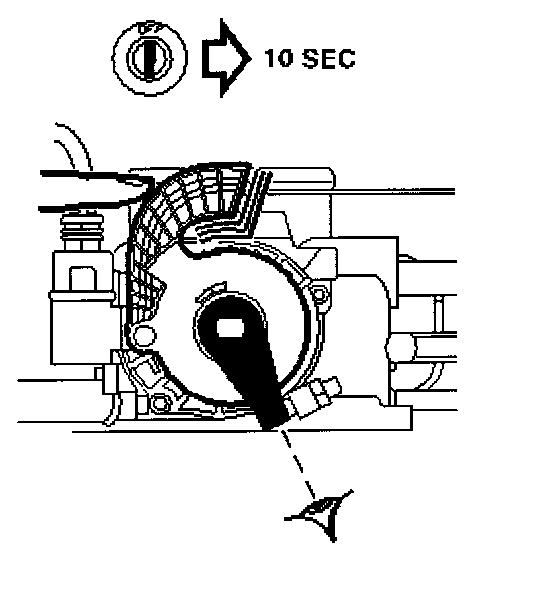

^ Switch off the ignition and wait 10 seconds to ensure that the flap valve motor will be without current.
^ Turn the pedal arm and make sure the throttle arm does not move.

Is the function correct?

NO ^ Resetting the Limp-Home Mechanism

YES ^ Continue With Checking Mechanical Limp-home

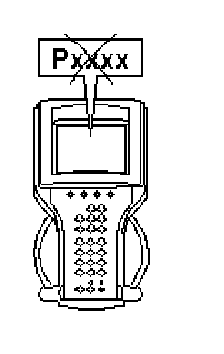

Clear diagnostic trouble codes : Trionic
