Charge Air Bypass Valve. Performance Problems.







Fault symptoms
^ CHECK ENGINE.

On-Board Diagnostics

Type of diagnosis:
^ Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
^ General conditions for this trouble code: Atmospheric pressure must exceed 72 kPa and the engine coolant and intake air temperatures must exceed -7 degree C.
^ Main relay voltage exceeding 10 V. Engine speed below 3500 rpm. The inlet pressure drops rapidly by more than 3 kPa whereupon the accelerator pedal is fully released. The charge air pressure exceeds 120 kPa. The solenoid valve for the by-pass valve has been deactivated.

Fault criteria:
^ Charge air pressure pulsating at 14-18 Hz with amplitude exceeding 3 kPa. Criteria must be fulfilled on two separate occasions within 600 s during the same driving cycle.

Dependents:
^ P0106, P0107, P0108, P1105, P1106, P1107, P1108, P1530, P1531, P1532, P1631, P1632 and P1633.

System reaction to a fault:
^ The MAP sensor is used as a substitute value.

OK report:
^ Enable criteria fulfilled and amplitude below 1 kPa. Criteria must be fulfilled on three consecutive occasions during the same driving cycle.

Fault handling: (For more information, Fault Handling III, Other Emission-Related Components and Function)

^ Type III.

Diagnostic help

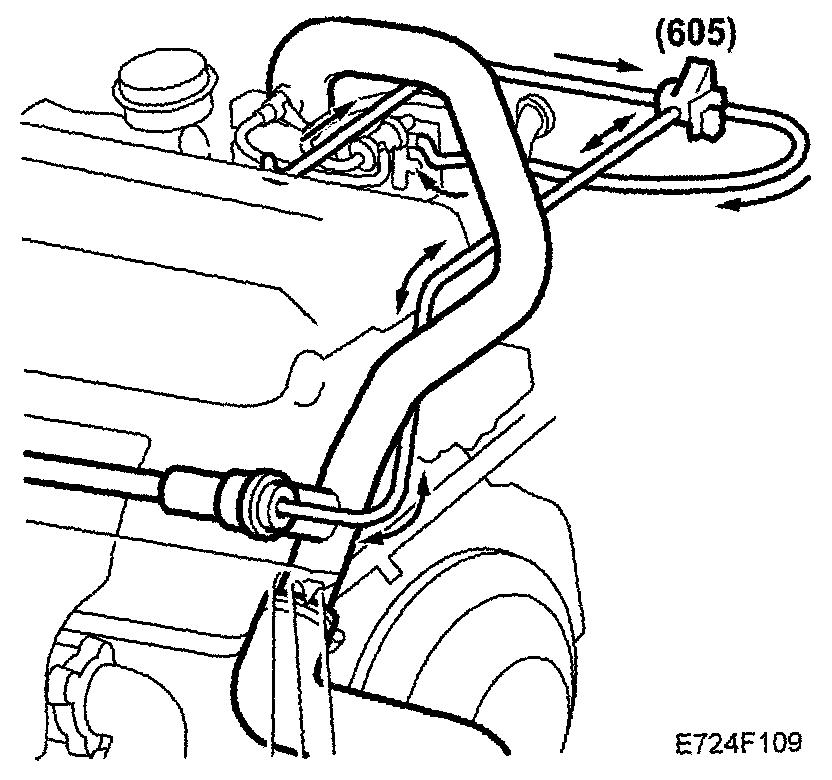

Fault diagnosis concerns a fault in connecting control hoses, in the solenoid valve or the bypass valve.

Functions in the diagnostic tool related to the fault:
^ Diagnostic status for the diagnosis.
^ Activate output for bypass solenoid.

For more information refer to description of read values, Activate Menu
