P0785

P0785

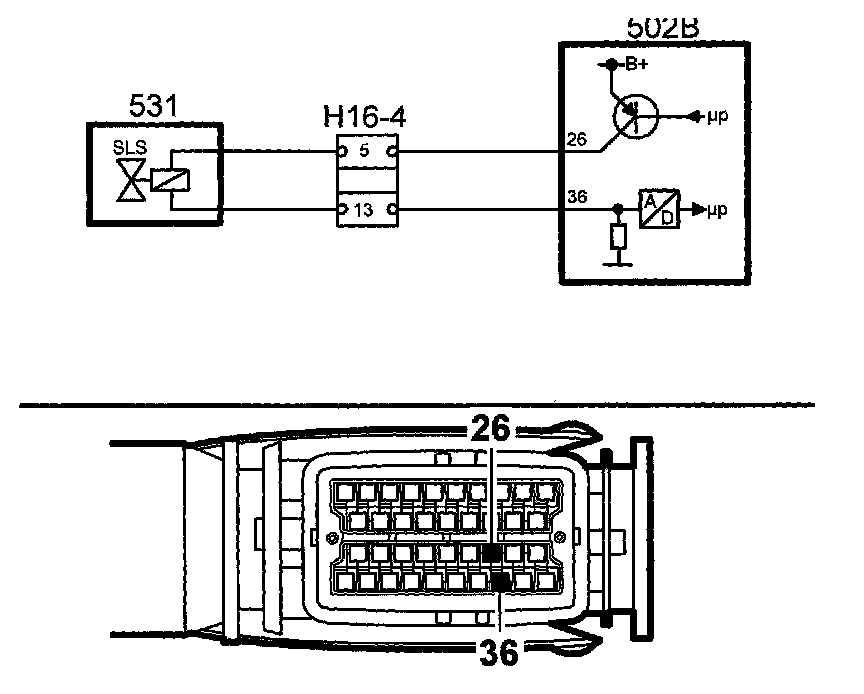

Solenoid SLS. Open/Short to Ground. Short to B+.





Fault symptoms

CHECK GEARBOX warning lamp is on.

TCM in Limp-Home mode.

Conditions
Fluid temperature exceeds 20°C

Battery voltage between 11 and 16 V

Fault criteria
If the control unit detects that the current consumption for solenoid SLS is outside its limits, DTC P0785 will be generated.

Diagnostic help
The status of solenoid SLS can be read using the diagnostic tool.

Solenoid SLS can be activated using the diagnostic tool.
