P0768

P0768

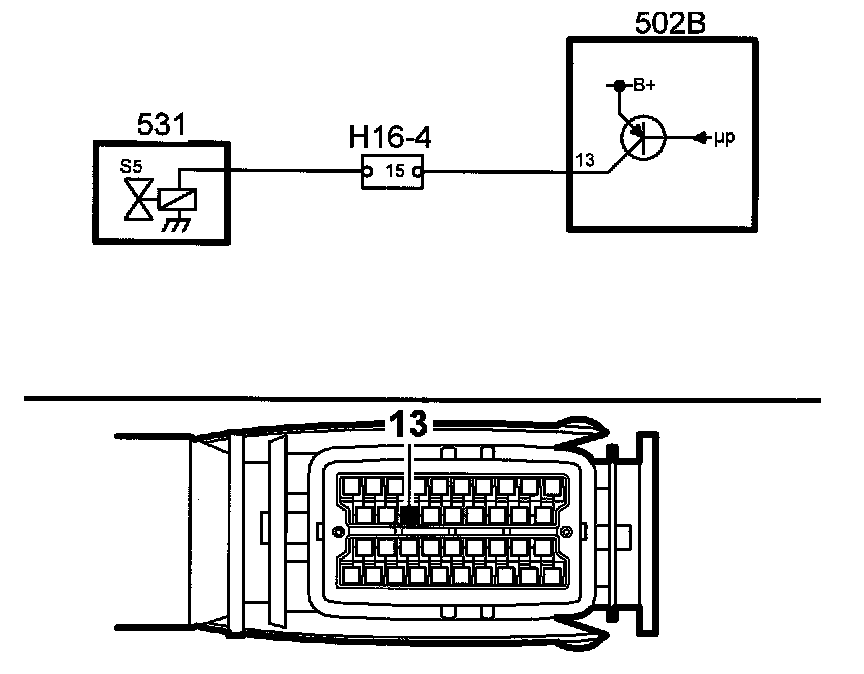

Solenoid S5. OPEN/Short to Ground. Short to B+.





Fault symptoms

CHECK GEARBOX warning lamp is on.

TCM in Limp-Home mode.

Conditions
Fluid temperature exceeds 20°C

Battery voltage between 11 and 16 V.

Fault criteria
If the control unit detects that the current consumption for solenoid S5 is outside its limits, DTC P0768 will be generated.

Diagnostic help
The status of solenoid S5 can be read using the diagnostic tool.

Solenoid S5 can be activated using the diagnostic tool.
