P0763

P0763

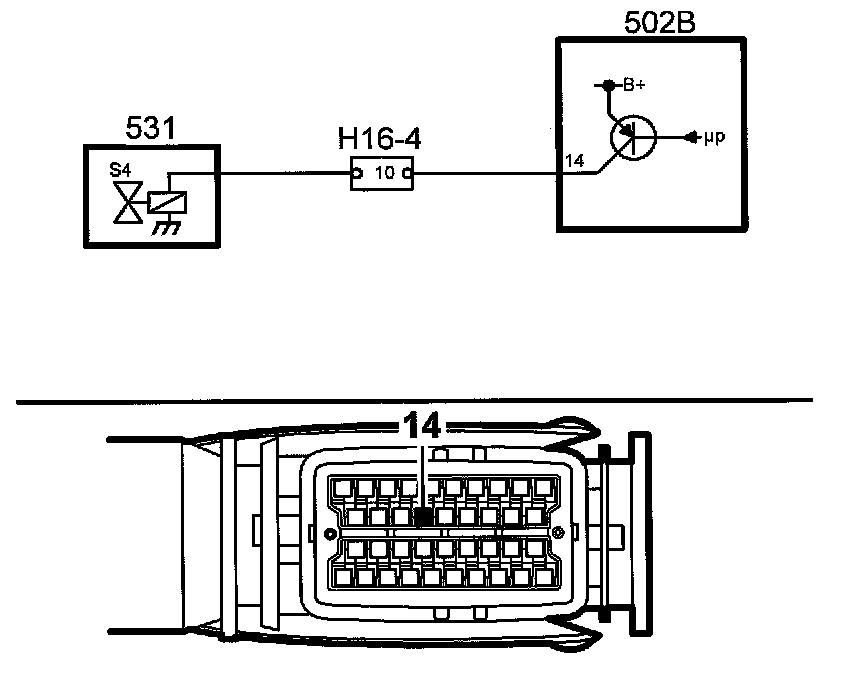

Solenoid S4. OPEN/Short to Ground. Short to B+.





Fault symptoms

CHECK GEARBOX warning lamp is on.

TCM in Limp-Home mode.

Conditions
Fluid temperature exceeds 20°C

Battery voltage between 11 and 16 V.

Fault criteria
If the control unit detects that the current consumption for solenoid S4 is outside its limits, DTC P0763 will be generated.

Diagnostic help
The status of solenoid S4 can be read using the diagnostic tool.

Solenoid S4 can be activated using the diagnostic tool.
