P0758

P0758

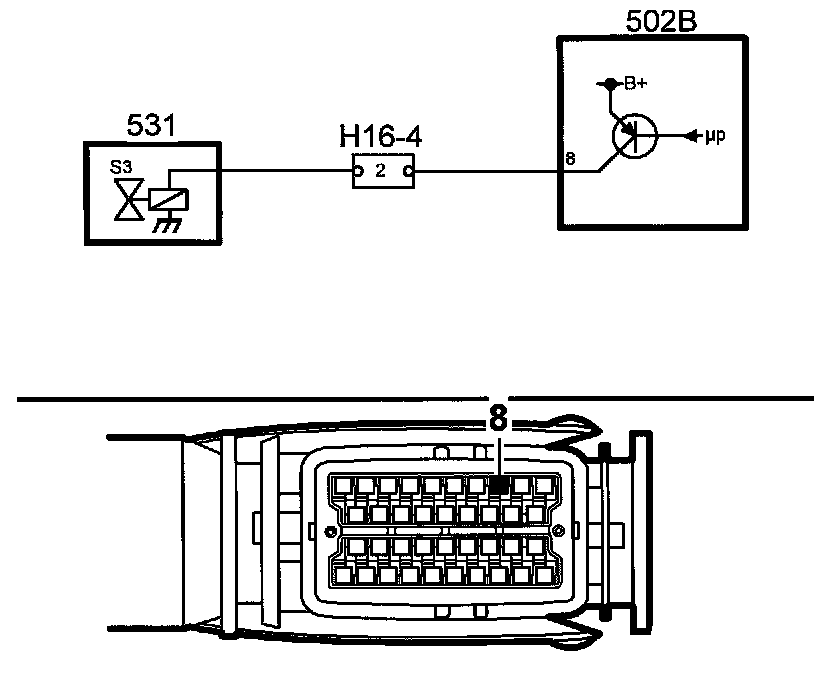

Solenoid S3. Open/Short to Ground. Short to B+.





Fault symptoms

CHECK GEARBOX warning lamp is on.

TCM in Limp-Home mode.

Conditions
Fluid temperature exceeds 20°C

Battery voltage between 11 and 16 V.

Fault criteria
If the control unit detects that the current consumption for solenoid S3 is outside its limits, DTC P0758 will be generated.

System reaction to a fault:
No adaptation

Transmission in limp home mode

Diagnostic help
The status of solenoid S3 can be read using the diagnostic tool.

Solenoid S3 can be activated using the diagnostic tool.
