P0703

P0703
Brake Switch Status. Error message from ECM





Fault symptoms

Conditions
Incorrect signal for 4 s.

Fault criteria

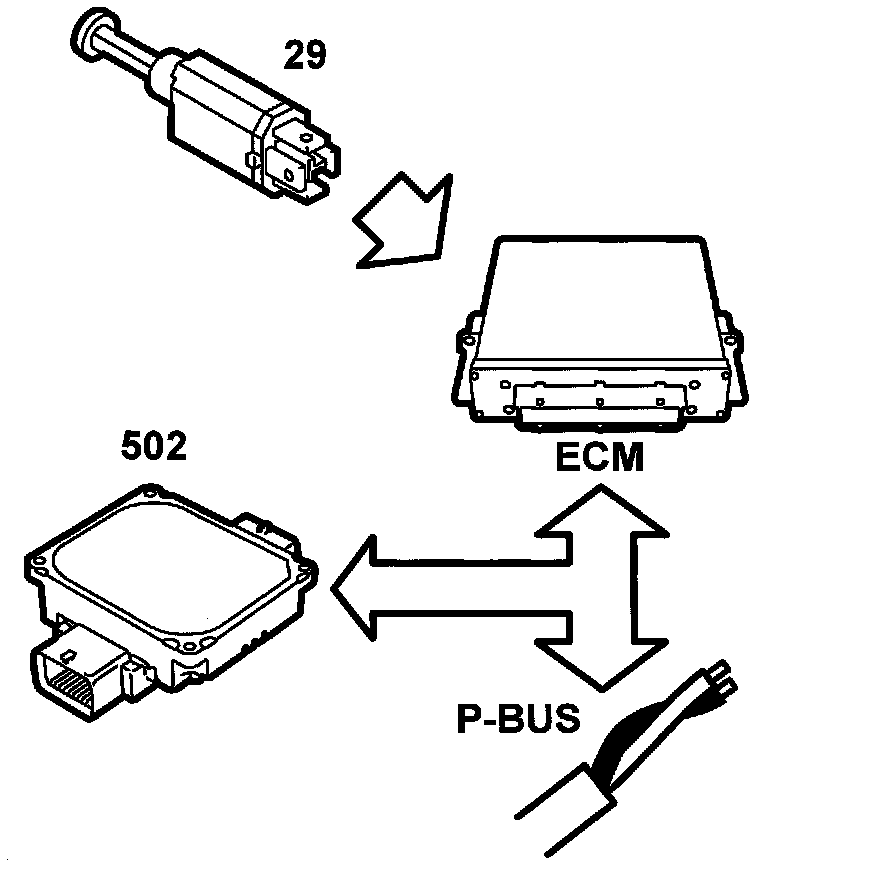

The TCM receives information as to whether the brake pedal is depressed. The ECM send this information via the bus. If the ECM sends out a message that this information is faulty, DTC P0703 is generated.

Diagnostic help
This diagnostic trouble code indicates a fault in the ECM.
