P0560

P0560
Battery Voltage. Voltage Incorrect.





Fault symptoms

TCM in Limp-Home mode.

CHECK GEARBOX indicator lamp on.

Conditions
Ignition ON

Fault criteria
Battery voltage above 18V or below 9V for at least 1s.

Diagnostic help
Diagnostic trouble code P0560 is not a fault in the true sense. Other diagnostic trouble codes may be generated if battery voltage is outside the normal limits.

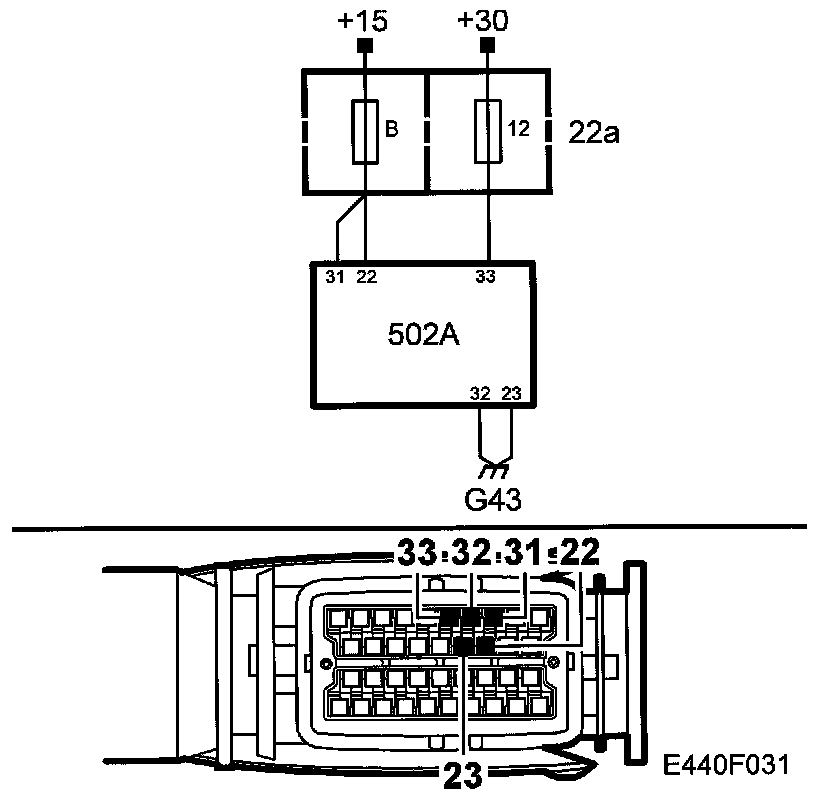

Check the wiring
Jiggle the wiring harness at several points and in different directions to reveal intermittent breaks and short circuits in the various leads. Observe the multimeter, test lamp or diagnostic instrument while carrying out this check.
