Diagnostic Procedure

Diagnostic Procedure












^ Turn the ignition switch to the ON position.

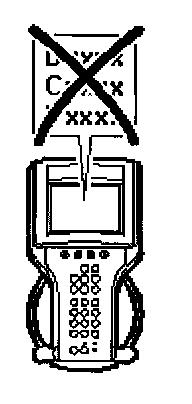

^ Clear the diagnostic trouble codes in all systems.

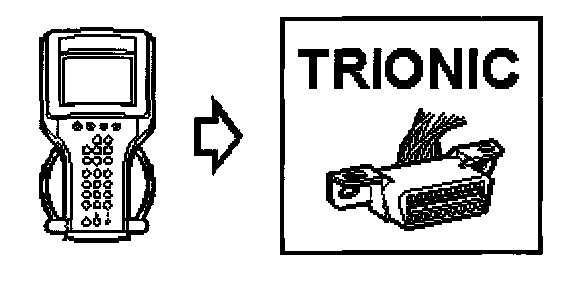

^ Contact Trionic.

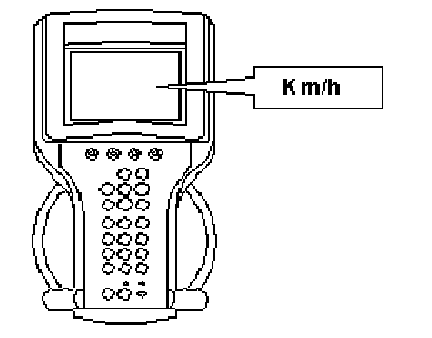

^ Read value: Vehicle Speed (Wire from ABS) (Trionic).
^ Drive the car and check that the reading roughly correspond to that shown on the speedometer.

Is the function correct?

NO ^ Fault Not Rectified

YES ^ Remedial Action OK
