Checking Diagnostic Trouble Codes In the ABS

Checking Diagnostic Trouble Codes In the ABS












^ Turn the ignition switch to the ON position.

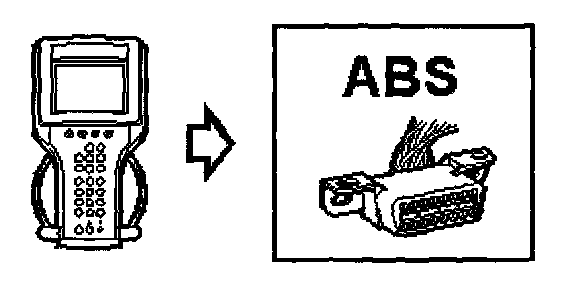

^ Contact ABS.
^ Obtain readouts of diagnostic trouble codes in the ABS.

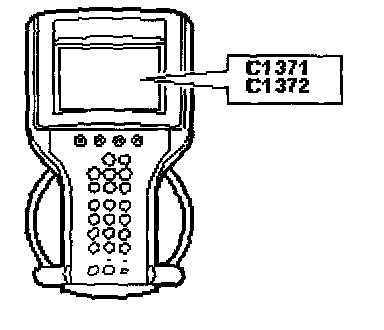

Has diagnostic trouble code C1371 or C1372 been registered?

NO ^ Checking the Wheel Speed Signal

YES ^ See fault diagnosis in the 'Brakes, ABS' service category. Diagnostic Procedure
