Implementation of Driving Cycle

Implementation of Driving Cycle

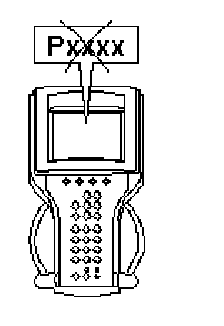

^ Clear diagnostic trouble codes

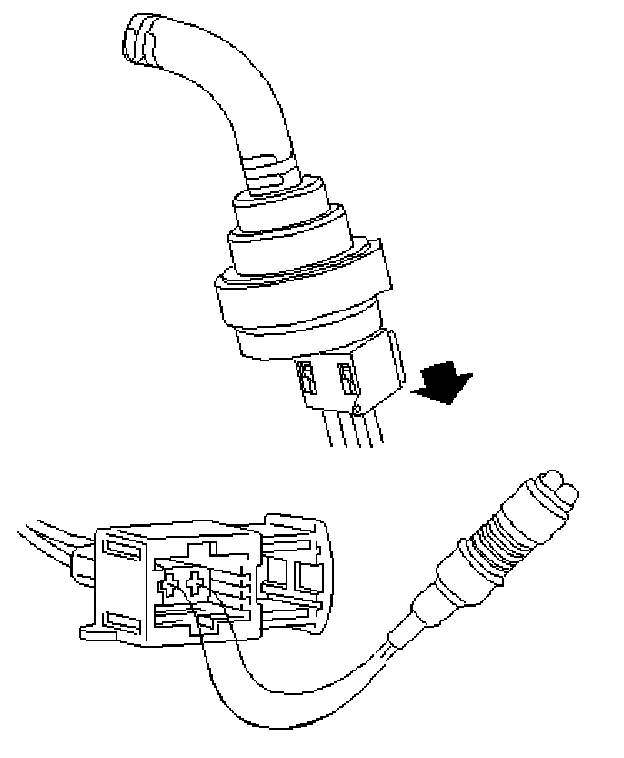

Unplug the connector:
^ EVAP canister purge valve (321)
^ Connect test lamp 86 11 857 to the female connector.

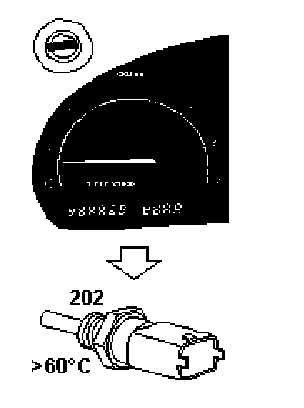

^ Start the engine and let it idle until the coolant temperature exceeds 60°C.

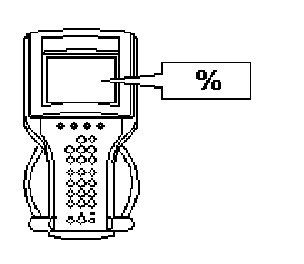

^ Read value: Purge Adaptation (Trionic).





^ State what the diagnostic tool shows:

-15% to +15% Performing A Driving Cycle

Other value Fault Not Rectified - II
