Checking Mass Air Flow When Under Partial Load

Checking Mass Air Flow When Under Partial Load









^ Turn the ignition switch to the OFF position.

Plug in the connector:
EVAP canister purge valve

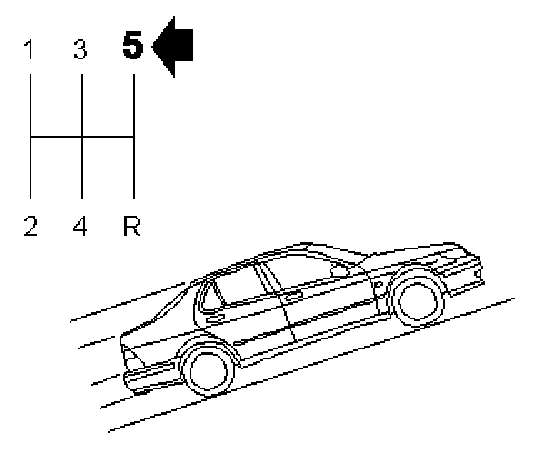

^ Drive the car in top gear with a steady high engine load.
^ Driving uphill is recommended.





^ Read value: Airmass Deviation from Calculated (Trionic).
^ State what the diagnostic tool shows:

15% to 25% Checking Air Leakage Before Flap

Other value Checking the Fuel Supply
