Check Additional Diagnostic Trouble Codes In the Trionic System

Check Additional Diagnostic Trouble Codes In the Trionic System





^ Turn the ignition switch to the ON position.

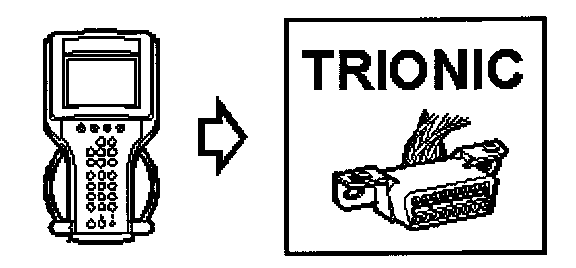

^ Contact Trionic.

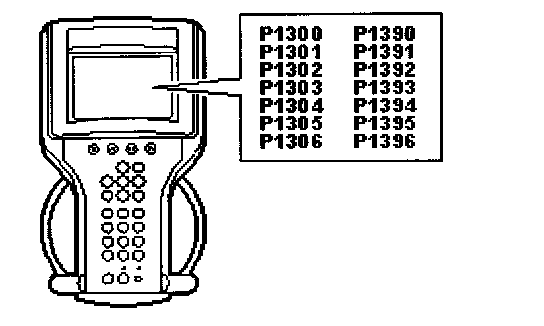

^ See whether any of the following diagnostic trouble codes have been recorded:

P1300 P1390
P1300 P1390
P1301 P1391
P1302 P1392
P1303 P1393
P1304 P1394
P1305 P1395
P1306 P1396

Have any of the above diagnostic trouble codes been recorded?

NO ^ Checking Further Diagnostic Trouble Codes In Trionic

YES ^ Rectify as described in the diagnostic procedure for the relevant diagnostic trouble code.
