Performing A Driving Cycle

Performing A Driving Cycle (Continued)












^ Turn the ignition switch to the OFF position.

Plug in the connector:
^ EVAP canister purge valve

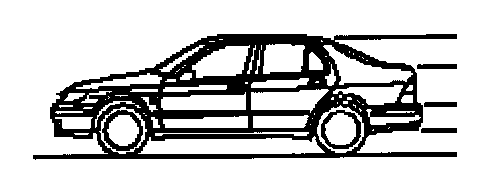

^ Drive the car between 60 and 100 km/h with constant accelerator depression.
^ Read value: Multiplicative Adaptation (Trionic).
^ Wait until the value changes. Another speed can then be selected immediately or come to a stop if desired. The engine must not be turned off, however.
^ The reading will eventually stabilize.
^ State what the diagnostic tool shows:


-15% to -25% Remedial Action OK

Other value Fault Not Rectified - II
