Checking the Thermostat

Checking the Thermostat

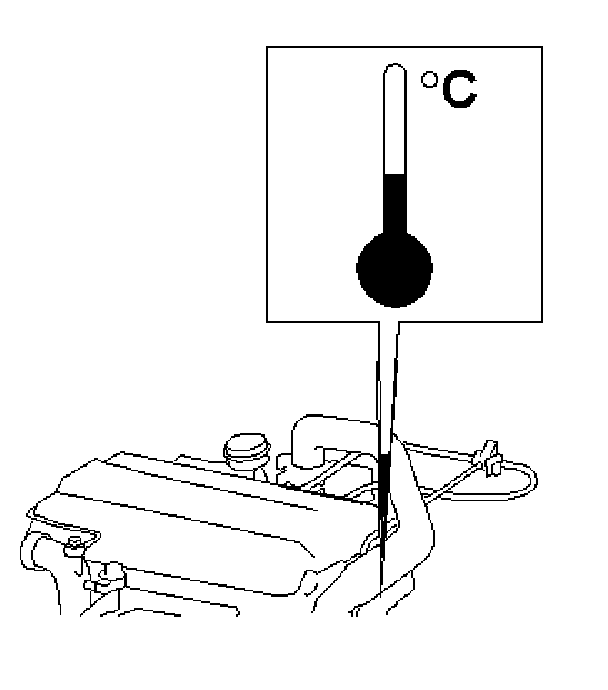

^ Check by feeling the upper radiator hose close to the thermostat housing, making sure that it warms up quickly when the coolant temperature reaches 89 °C and the thermostat opens.

^ The coolant temperature should after this remain relatively constant, approximately 85-95 °C for a minute or so.

Is the function correct?

NO ^ Changing Components - I

YES ^ Checking the Sensor's Grounding - II
