Checking Temperature

Checking Temperature

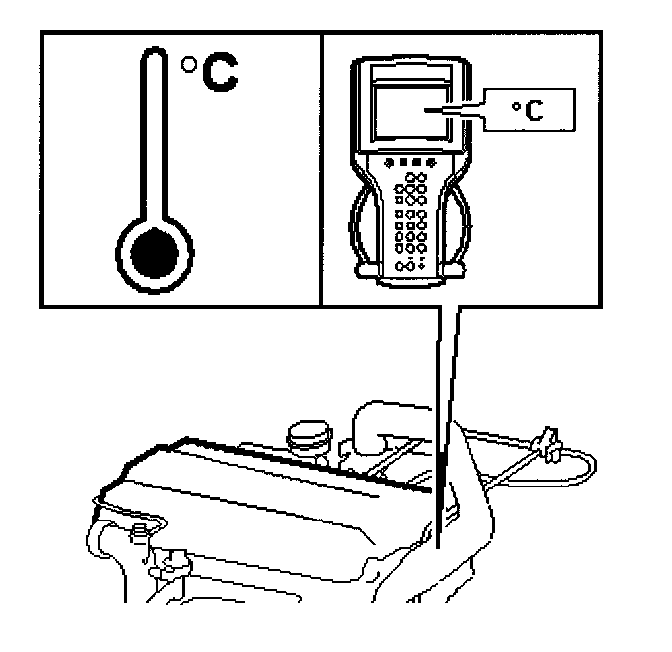

^ Read value: Coolant Temperature (Trionic).
^ Check the temperature of the cylinder head with an external temperature gauge.
^ Check that the value on the diagnostics tool is within 10 °C of measured temperature with warm and cold engine.
^ The reading must also be stable and not fluctuating a number of degrees.

Is the function correct?

NO ^ Fault Not Rectified

YES ^ Remedial Action OK
