Checking Mass Air Flow When Under Partial Load

Checking Mass Air Flow When Under Partial Load












^ Turn the ignition switch to the ON position.

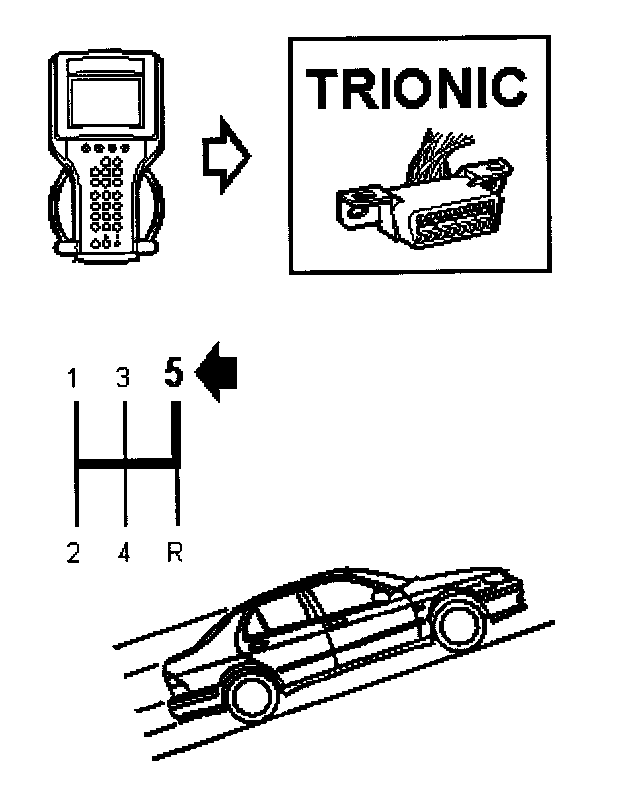

^ Contact Trionic.
^ Read value: Airmass Deviation from Calculated (Trionic).
^ Drive the car in top gear with a steady high engine load.
^ Driving uphill is recommended.

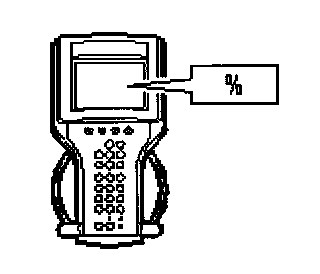

^ State what the diagnostic tool shows:

-15% to +15% Remedial Action OK

Other value Fault Not Rectified
