Checking Air Leakage

Checking Air Leakage

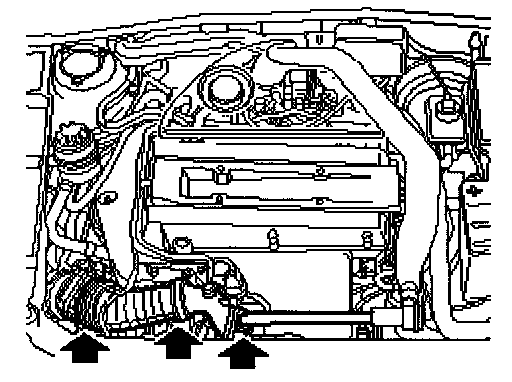

^ Check that there are no major air leaks between the mass air flow sensor and the throttle.
^ The air leak must correspond to a 20 mm hole for a diagnostic trouble code to be generated.

Is the system airtight?

NO ^ Diagnostic Procedure

YES ^ Checking the Sensor's Power Supply
