ABS Without TCS or ESP

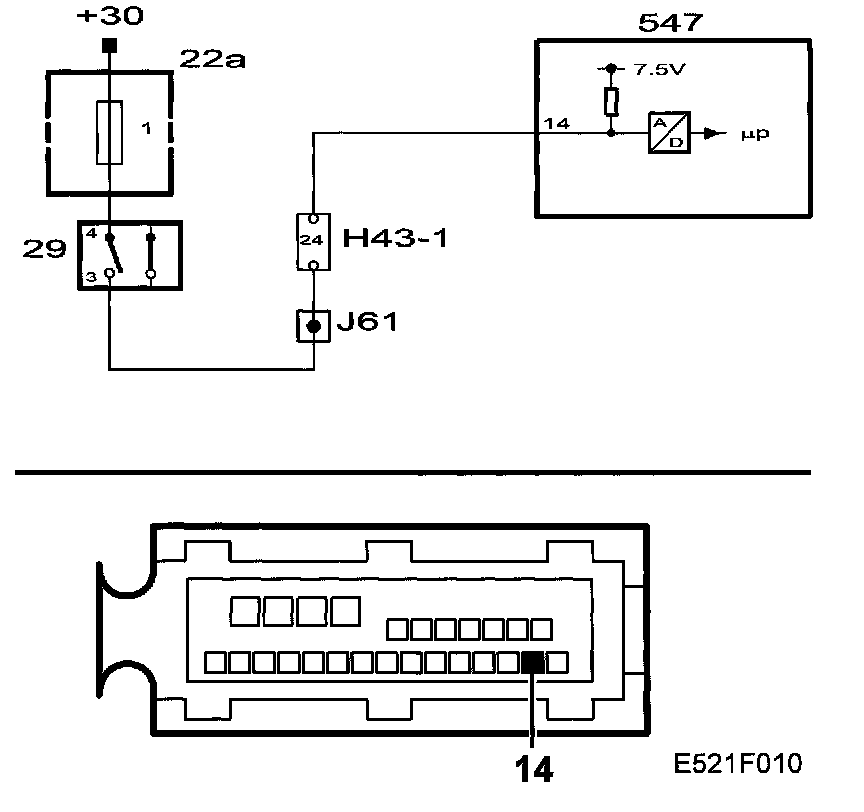

C2470 Brake Light Switch. Open Circuit





Fault symptoms
No fault symptoms.

Conditions
DTC will be generated if there is a break in circuit continuity for more than 1 second.

Diagnostic help
The diagnostic tool can be used to determine the status of the brake-light switch (Open/Closed).
- Select "Read values".
- Select "Brake-light switch".
