ABS With ESP and TCS

C2470
Brake Light Switch. Open Circuit

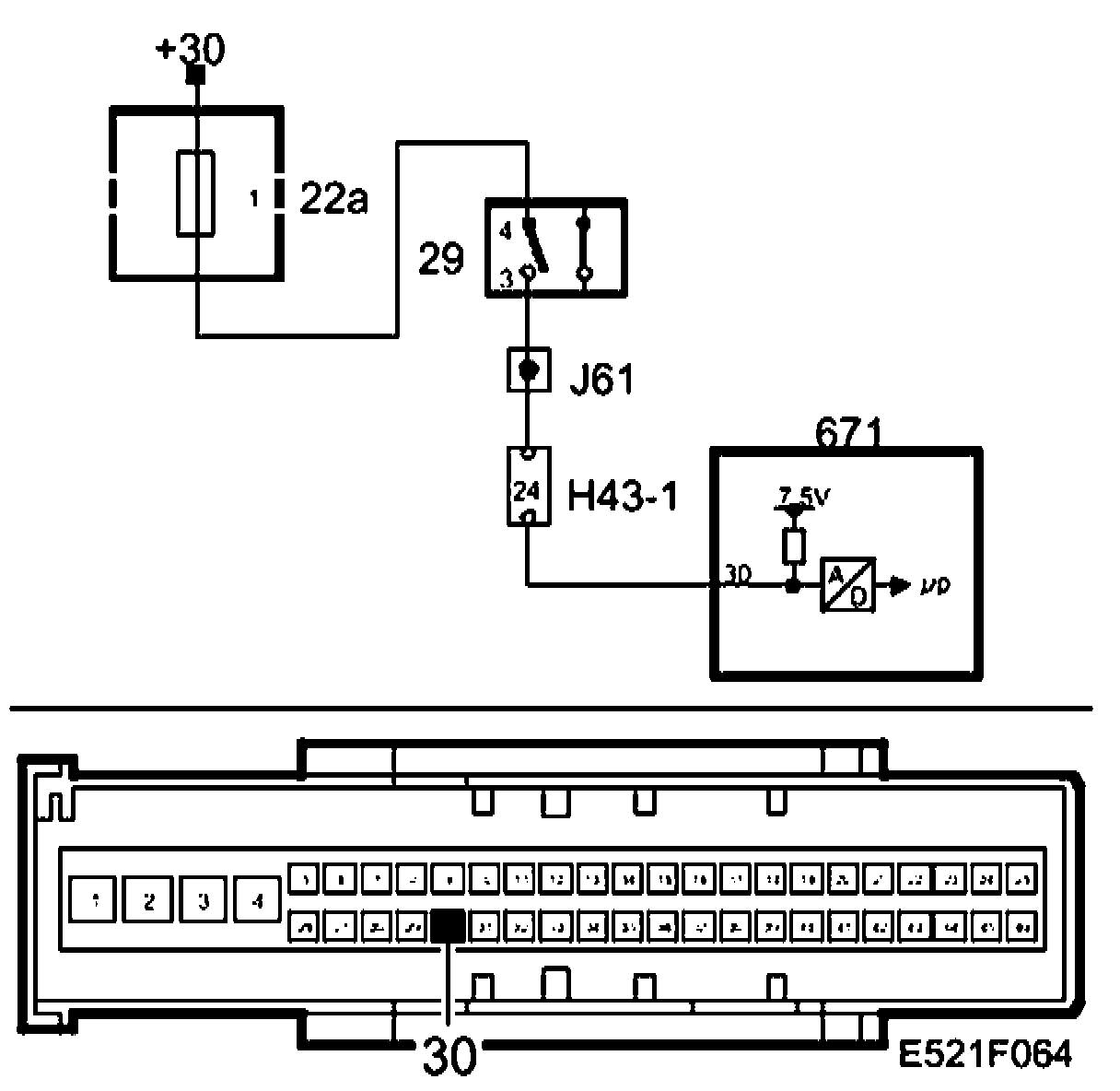

Diagram:

Fault Symptoms
No fault symptoms.

Conditions
Fault generated if open circuit for longer than 1 second.

Diagnostic Help
The diagnostic tool can be used to determine the status of the brake light switch (Open/Closed).
- Select "Read values".
- Select "Brake light switch".
