ABS Without TCS or ESP

C2465 Pump Motor. Incorrect





Fault symptoms
ABS warning lamp on. ABS not functioning.

Conditions

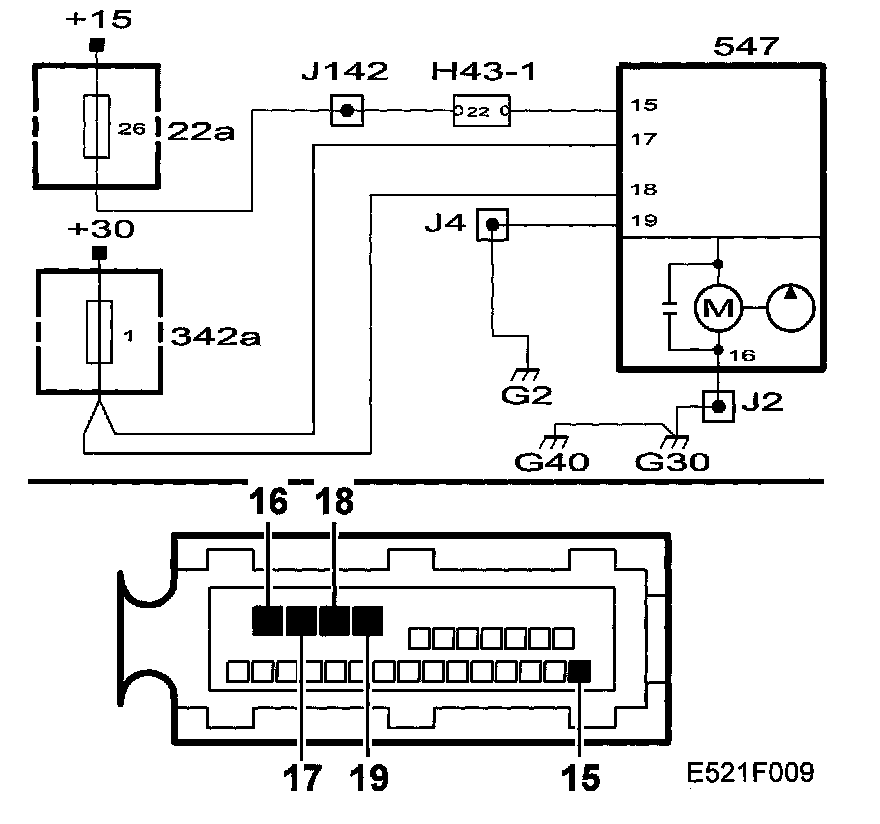

The pump motor is monitored continuously for circuit continuity and short-circuiting. The pump motor test starts when the ignition is switched ON and the road speed is above 6 km/h.

Diagnostic help
The pump motor can be activated using the diagnostic tool.
- Select "Activate" .
- Select "Pump motor".
- If the ABS control module is not grounding (pin 16), DTC C2465 will be generated.
