ABS With ESP and TCS

C1532
Battery Voltage. Too Low

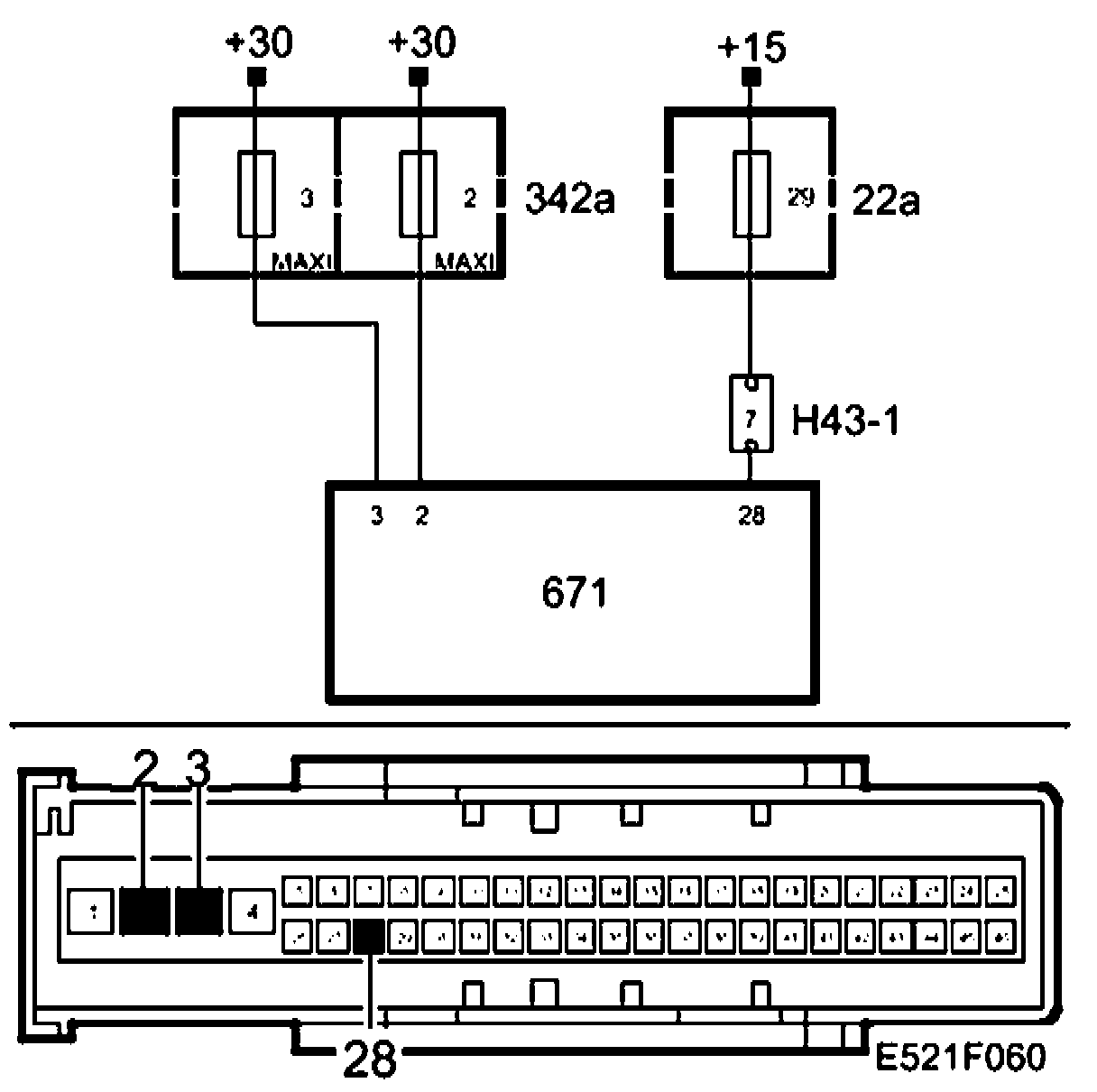

Diagram:

Fault Symptoms
Warning lamps for ESP and brakes are on as also is the central warning lamp.
ESP OFF warning lamp is on.
No ESP function.

Conditions
Battery voltage <9 V for more than 0.5 seconds.
Wheel speeds above 6 km/h (3.7 mph).
