ABS With TCS Only

C1377 Wheel Sensor Front Right. No Signal





Fault symptoms
ABS, brakes and central warning lamps are on.
TCS OFF indicator lamp is on.
No ABS or TCS function.

Conditions
DTC is set by open circuit.

Diagnostic help
A reading of the front right wheel speed sensor can be obtained with the diagnostic tool.
^ Select "Read values".
^ Select "Wheel Speed Front Right".

Current wheel speed in km/h (mph) is displayed.

With the front of the car raised, the diagnostic tool should read approximately 5 km/h (3.1 mph) if the front right wheel is rotated by hand at about 1 rev./second.

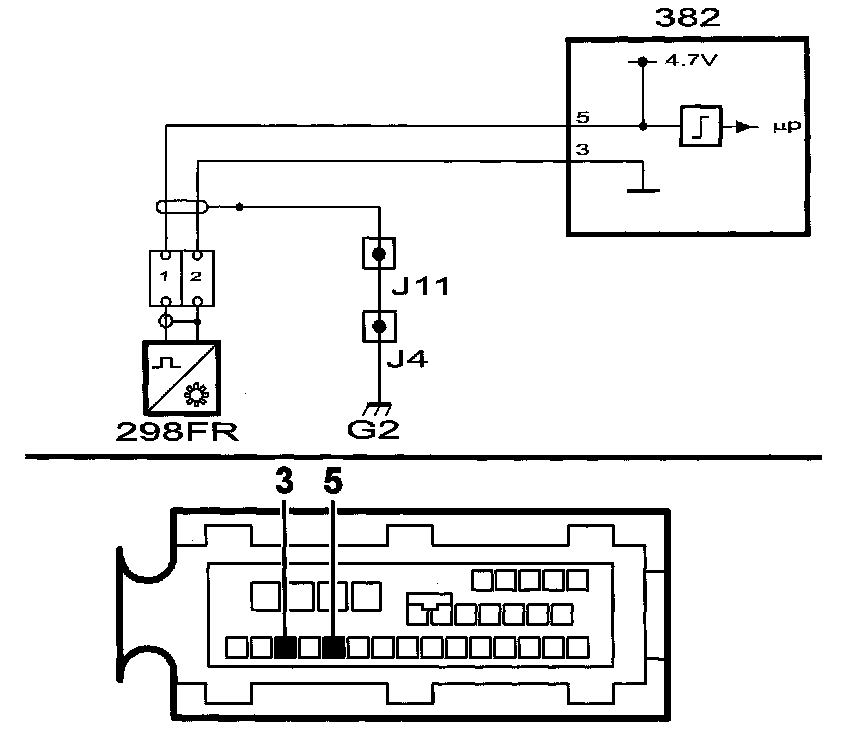

^ For tracing electrical faults, the diagnostic tool can be used to take readings from the control module's wheel-sensor inputs.
- Select: "Read values"
- Select: "Wheel-sensor output"

The reading is used to determine whether the control module has lost contact with any of the wheel sensors. If there is contact, the value should be approximately 3.4 V DC.
Defective contact front right approximately 0.8 V DC.
