ABS Without TCS or ESP

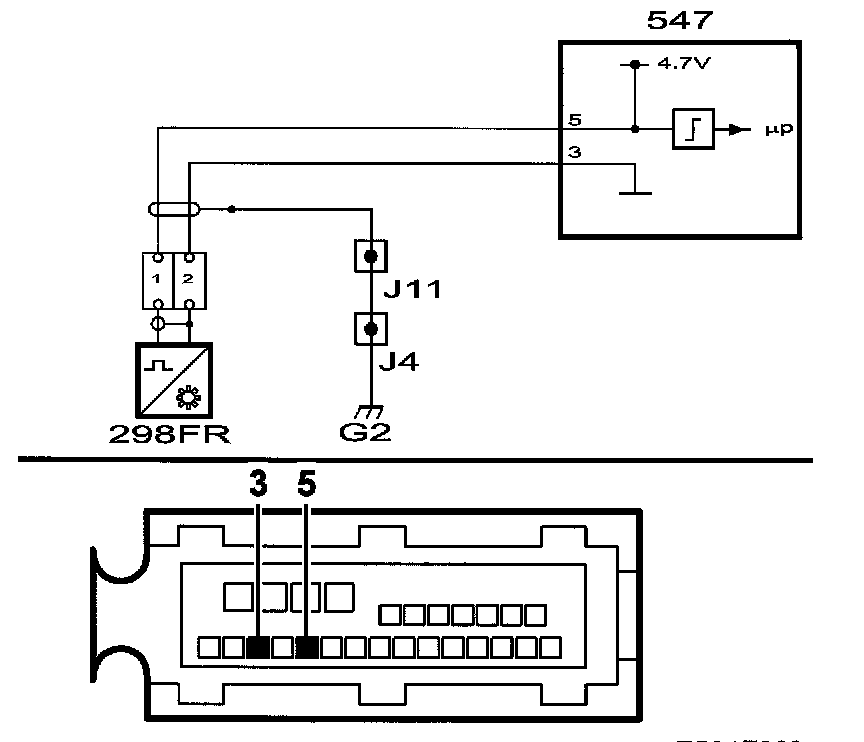

C1376 Wheel Sensor Front Right. Signal Incorrect





Fault symptoms
ABS warning lamp on. ABS not functioning.

Conditions
^ Speed signal absent for more than 10 ms when road speed above 40 km/h.
^ Speed signal faulty when road speed above 12 km/h.

Diagnostic help
^ Front right wheel speed sensor can be read using the diagnostic tool.
- Select "Read values".
- Select "Wheel Speed Front Right ".

The current wheel speed in km/h is displayed.
With the front of the car raised off the ground, the diagnostic tool should show a reading of about 5 km/h when the FR wheel is rotated by hand at a speed of about 1 turn a second.
