ABS With ESP and TCS

C1371
Wheel Sensor Front Left. Signal Incorrect

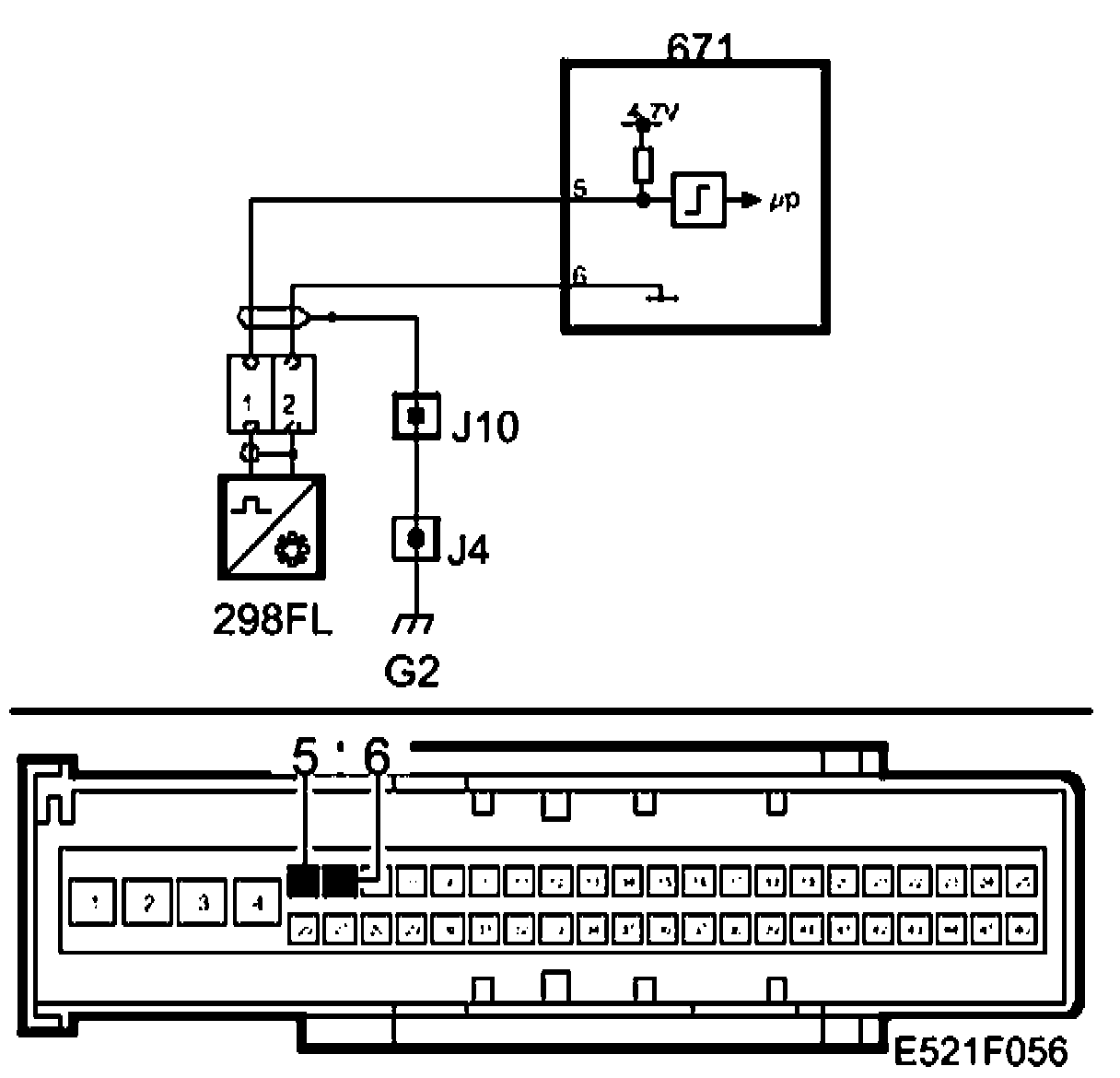

Diagram:

Fault Symptoms
Warning lamps for ESP and brakes are on as also is the central warning lamp.
ESP OFF warning lamp is on.
No ABS, TCS, ESP function

Conditions
No speed signal for longer than 10 ms when vehicle speed exceeds 40 km/h (25 mph).
Speed signal incorrect if vehicle speed exceeds 12 km/h (7.5 mph).

Diagnostic Help
FL wheel speed sensor signal can be read using diagnostic tool.
- Select 'Read values'.
- Select "Wheel Speed Front Left ".

Current wheel speed in km/h (mph) is displayed.
- With the front of the car raised, the diagnostic tool should read approximately 5 km/h (3,1 mph) if the front left wheel is rotated by hand at about 1 rev./second.
