ABS With ESP and TCS

C0551
Control module not programmed






Fault Symptoms
ESP OFF indicator lamp on. ESP function missing.

Conditions
The ESP control module is not programmed.

Diagnostic Help

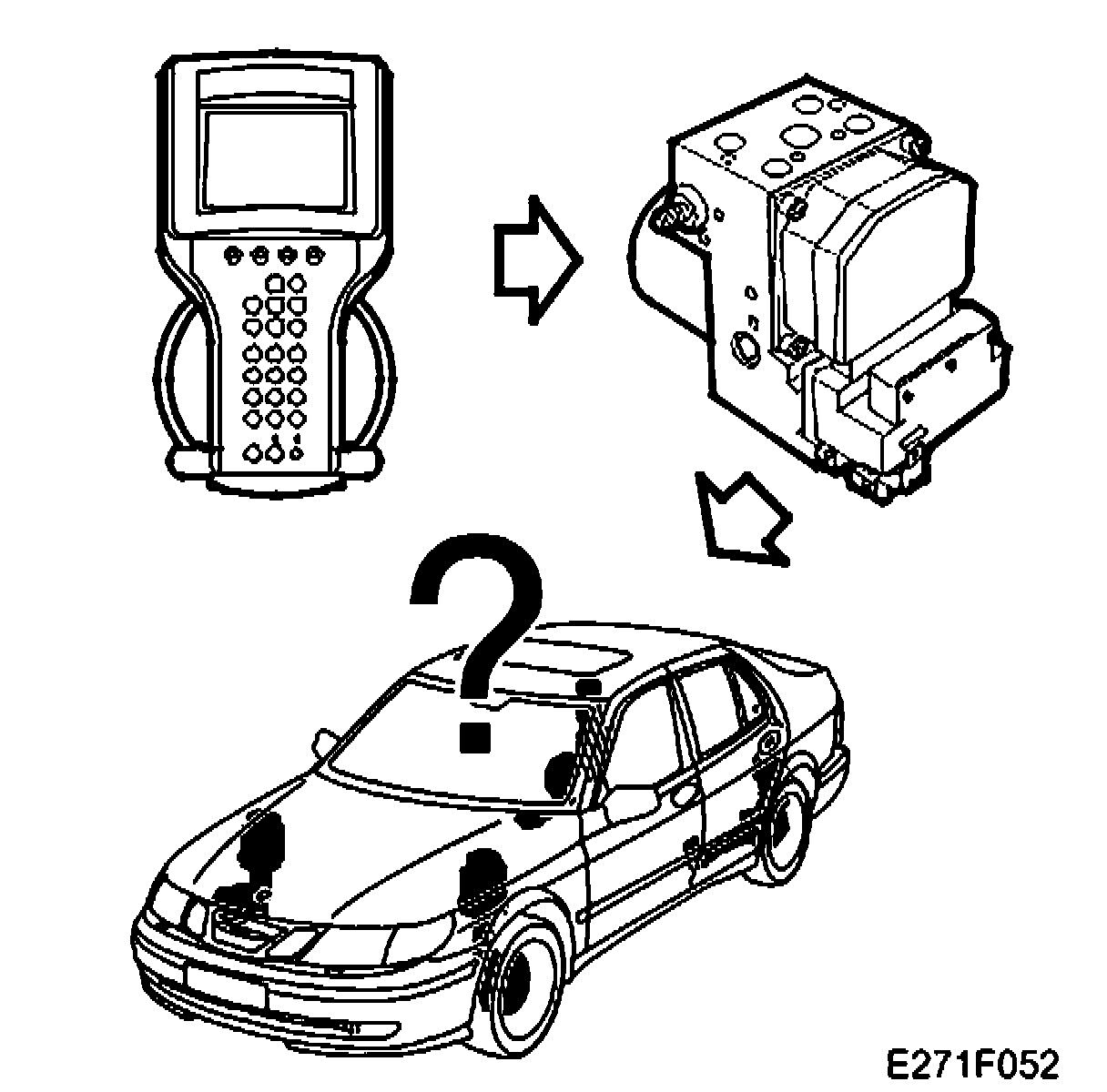

Variant programming of ESP control module is carried out using the diagnostic tool.
- Select "ESP"
- Select "Programming"
- Select "Configuration"
Program the correct brake size into the ESP control module.
