B2950

B2950

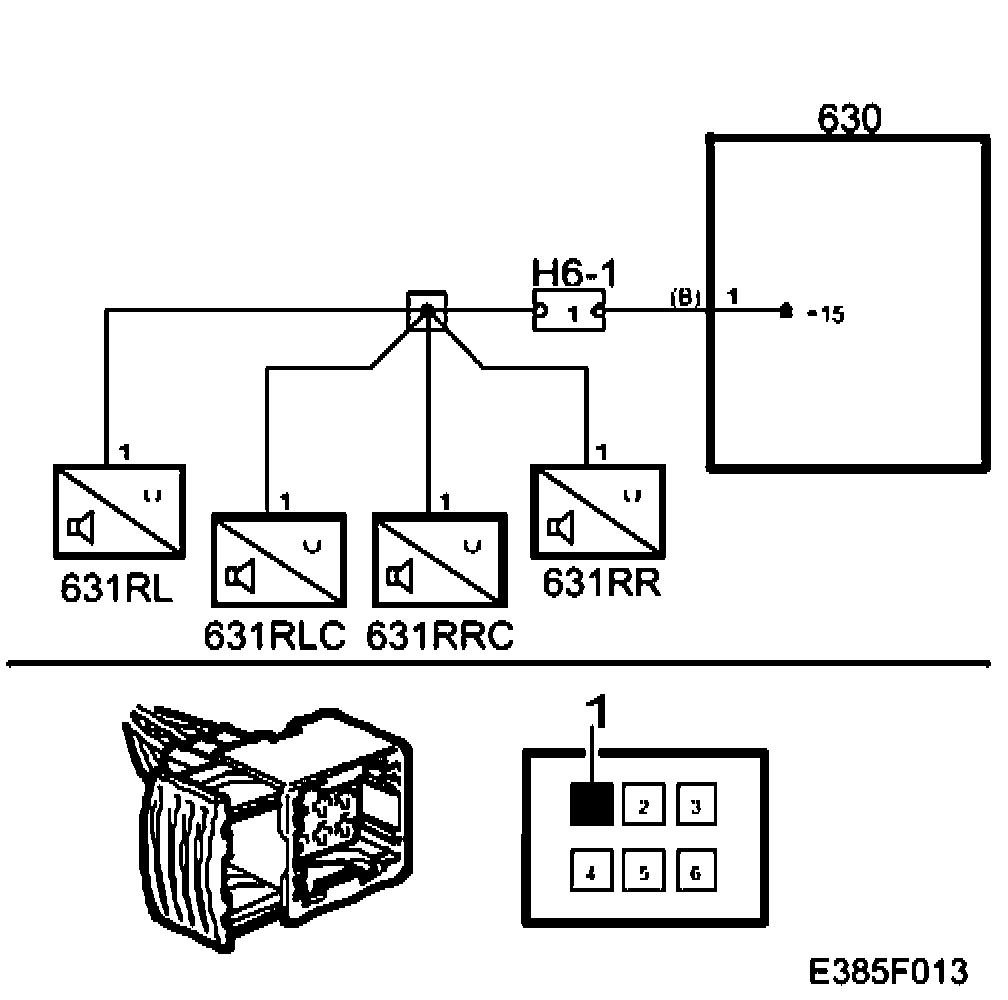

Sensor power supply. Shorted to ground






Fault Symptoms
Error message "PARK ASSIST FAILURE" shown on the SID when reverse gear is selected
The SPA stops measurement and acoustic signals are given by the SID when the SPA shuts down.

Conditions
The following conditions apply for the diagnostic trouble code in question:
- Ignition switch in ON position
- Reverse gear selected
- The sensor power supply is below approx. 4 V.

Diagnostic Help
This fault diagnosis concerns electrical faults in the connection cables or distance sensor.

For further information about readings, see Menu "Read Values" found in this section under Scan Tool Testing. Menu Read Values
