B2945

B2945

Sensor Ground. Open Circuit / Short to B+







Fault symptoms
Perceived temperature in cabin too high or too low compared to the set temperature.

Conditions
The following conditions apply:
- Ignition ON
- Measured every 40 ms.
- Voltage on pins 22, 24 or 25 >0.4 V

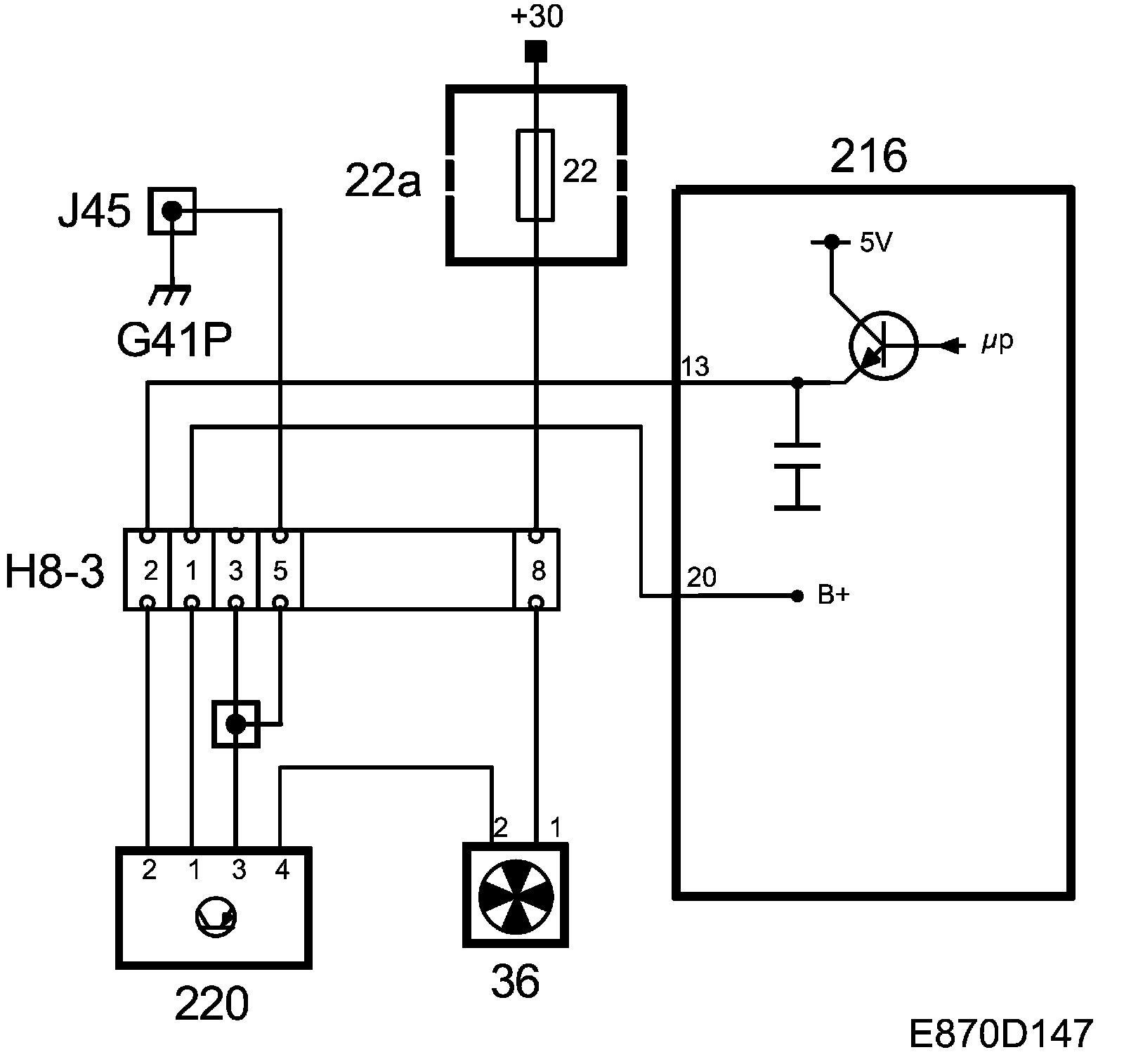

Fault Diagnosis Procedure
