B2916

B2916

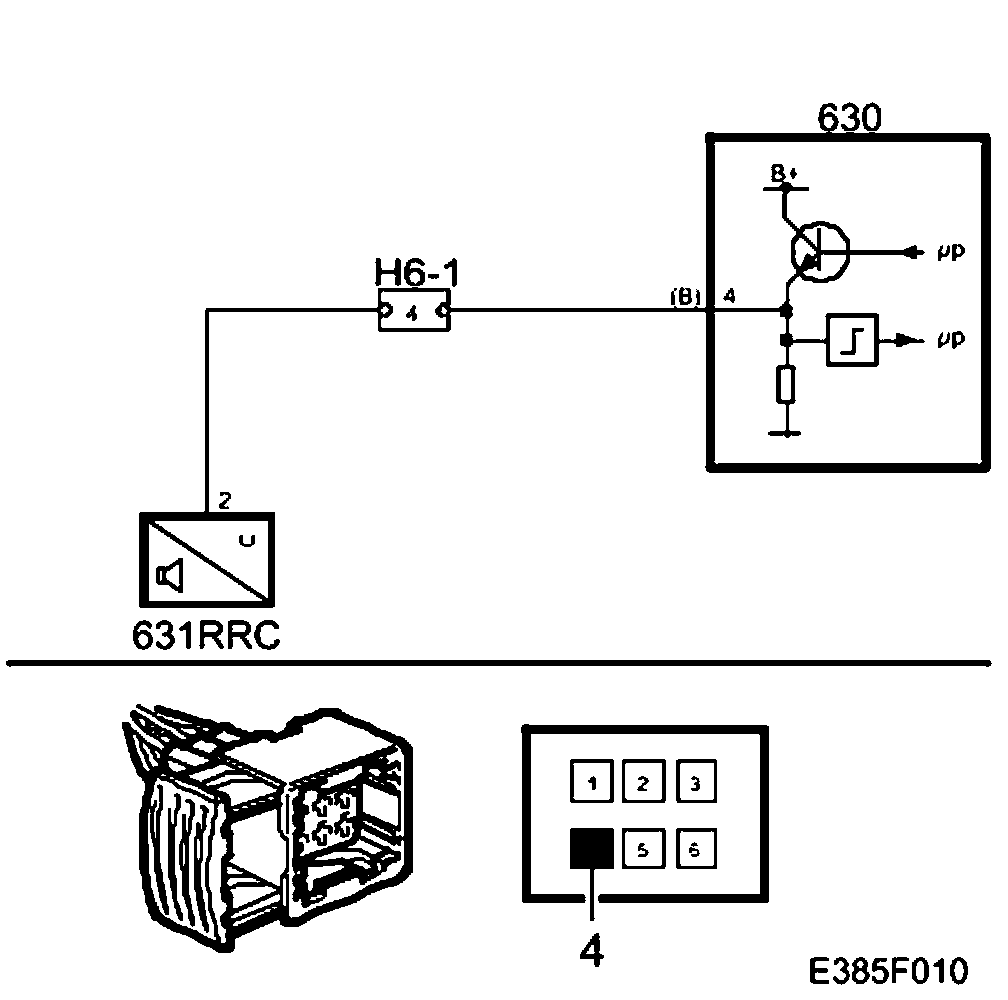

Right-hand centre distance sensor. Communication cable shorted to B+







Fault Symptoms
Error message "PARK ASSIST FAILURE" shown on the SID when reverse gear is selected
The SPA stops measurement and acoustic signals are given by the SID when the SPA shuts down.

Conditions
The following conditions apply for the diagnostic trouble code in question:
- Ignition switch in ON position
- Reverse gear selected

Diagnostic Help
This fault diagnosis concerns electrical faults in the connection cables or distance sensor.

Diagnostic tool functions related to the fault:
- Right-hand distance sensor, distance to object in cm.

For further information about readings, see Menu "Read Values" found in this section under Scan Tool Testing. Menu Read Values
